SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series) MON-CINE-7
SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series) MON-CINE-7
SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series) MON-CINE-7

SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series) MON-CINE-7

Original price was: $2,199.00.Current price is: $1,849.00.

SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series) MON-CINE-7

Categories: , Tag:

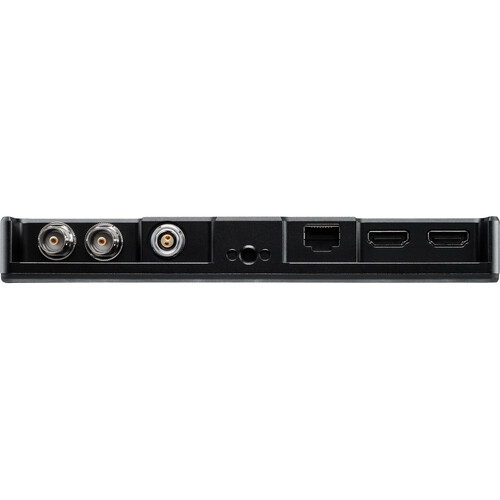

Monitor your camera with the Cine 7 Touchscreen On-Camera Monitor from SmallHD. Featuring a sharp 7″ display suitable for indoor or outdoor use, the Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.

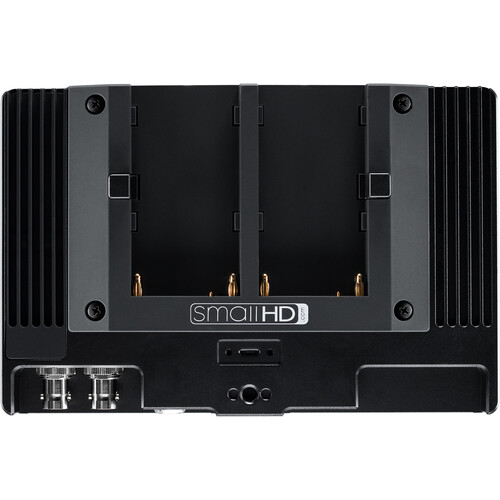

The Cine 7 features a bright 1800 cd/m², 322 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility. Using the intuitive PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. At the rear of the monitor, an L-series mount battery plate accepts two L-series batteries for powering your monitor.

Key Features

Daylight-viewable, 7″ touchscreen on-camera monitor with 1800 cd/m² brightness
Slim, lightweight design with 10-bit, touchscreen IPS LCD panel
Supports up to 1080p60 video via full-size HDMI and 3G-SDI inputs
HDMI-to-SDI and SDI-to-HDMI cross conversion is supported
Uses SmallHD PageOS 4 to organize and save customized function and settings pages
The included dual L-series battery plate allows you to hot-swap batteries as necessary, and the plate itself is swappable for other battery plates
Four 1/4″-20 mounting points on top, left, right, and back

RED Control Features

Run/stop
Color controls
Exposure controls
Status
Color temperature
Video format
Playback
Shutter
Menu control

Software Features

Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch zoom
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
Image flip: Auto and manual
Image rotation: Auto and manual
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Dual zebra: Customizable
Waveform: Luma and RGB, customizable with region of interest highlighting
Vectorscope: Yes
RGB parade: Customizable
Histogram: Luma and RGB
Image capture: With dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Audio meters: HDMI and SDI up to 8 channels
Weight 6 lbs
Dimensions 2 × 6 × 6 in
