SmallHD Cine 13 UHD 4K High-Bright Monitor MON-CINE-13
January 12, 2022
SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series) MON-CINE-7
January 14, 2022
SmallHD Indie 7 RED RCP2 Monitor Kit for KOMODO/DSMC3 16-0712-R2
$1,929.00
SmallHD Indie 7 RED RCP2 Monitor Kit for KOMODO/DSMC3 16-0712-R2
Use the lightweight Indie 7 RED RCP2 Monitor Kit from SmallHD to provide professional monitoring for your KOMODO or RED DSMC3 camera with a sharp 7″ display suitable for indoor or outdoor use. The kit includes the Indie 7 monitor, an L-series battery plate, a micro-USB to 5-pin control cable, a cable adapter, a microfiber cleaning cloth, and the RED KOMODO/DSMC3 RCP2 camera control software upgrade.
The Cine 7 monitor supports up to UHD 4K30 HDMI input/output as well as up to 1080p60 via the SDI input/output. The RED control software loads onto the monitor and allows you to control RED camera functions via the RCP2 protocol such as run/stop, color and exposure controls, status, color temperature, video format, playback, shutter, menu control, and more, all via the Cine 7 touchscreen. The control cable and micro-USB-to-LEMO adapter allow the monitor to connect to the camera.
SmallHD INDIE 7 Touchscreen On-Camera Monitor

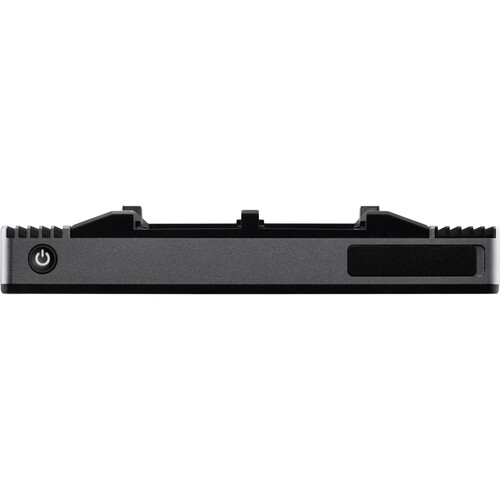

The lightweight INDIE 7 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 7″ IPS LCD with 1920 x 1200 resolution, 10-bit color processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input via HDMI.

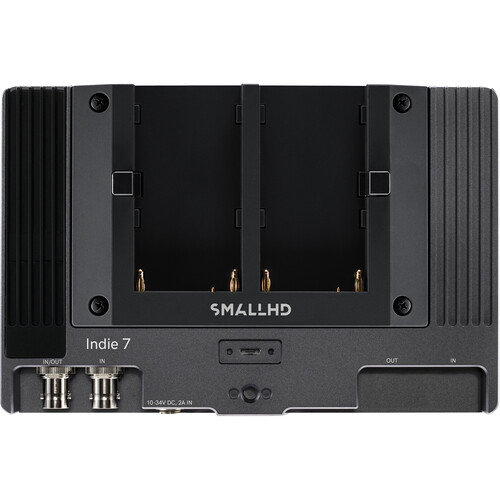

The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4″-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.
Using the intuitive SmallHD PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.
Features
Display Tools
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to 8 channels
SmallHD Microfiber Cleaning Cloth
Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7″ and is easily stored in a bag or pocket when not in use.
SmallHD Micro-USB to 5-Pin LEMO Adapter
Since SmallHD monitors can now display lens focus information with the latest OS3 upgrade, this Micro-USB to 5-Pin LEMO Adapter helps attach a Teradek RT lens controller to your monitor to map and display that information along with your camera’s image.
The adapter features a micro-USB male connector that plugs directly into your monitor, and the female 5-pin LEMO adapter on the other end connects a separately available cable from a Teradek CTRL.1 or CTRL.3 lens controller. The port can also power the controller using 5V pass-through power from the micro-USB port. The adapter mounts directly onto your monitor using a 1/4″-20 thumbscrew, or it can mount onto a monitor cage.
Compatibility
Teradek RT CTRL.1 and CTRL.3 lens controllers
