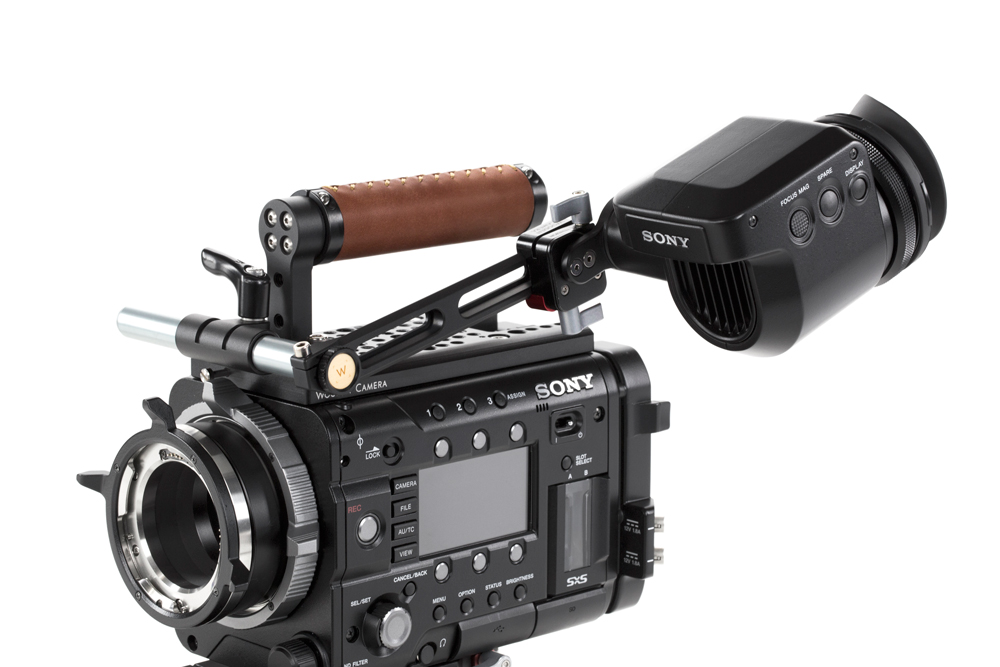

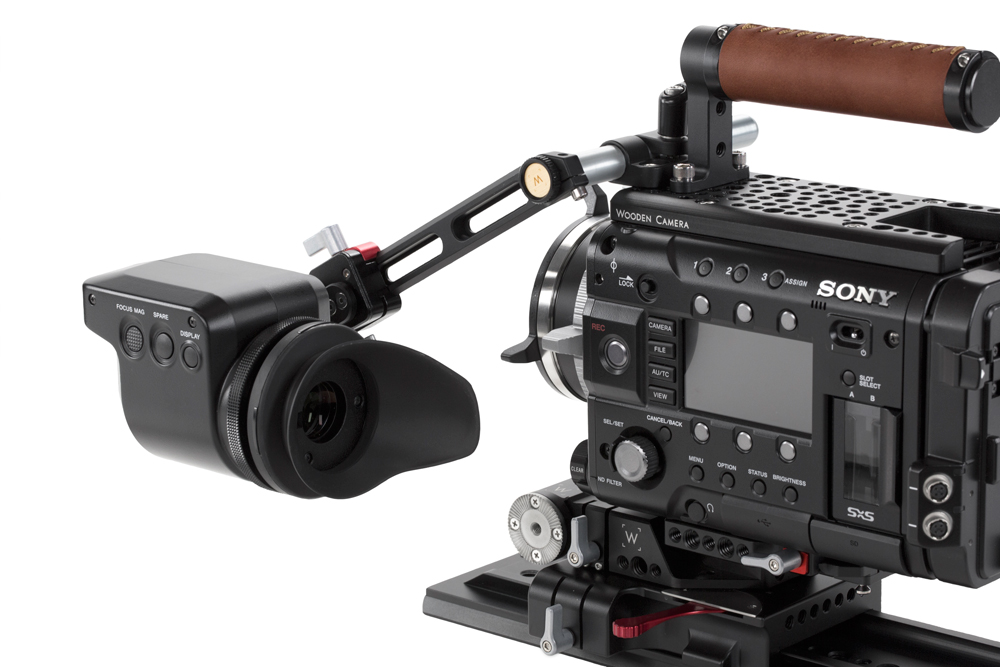

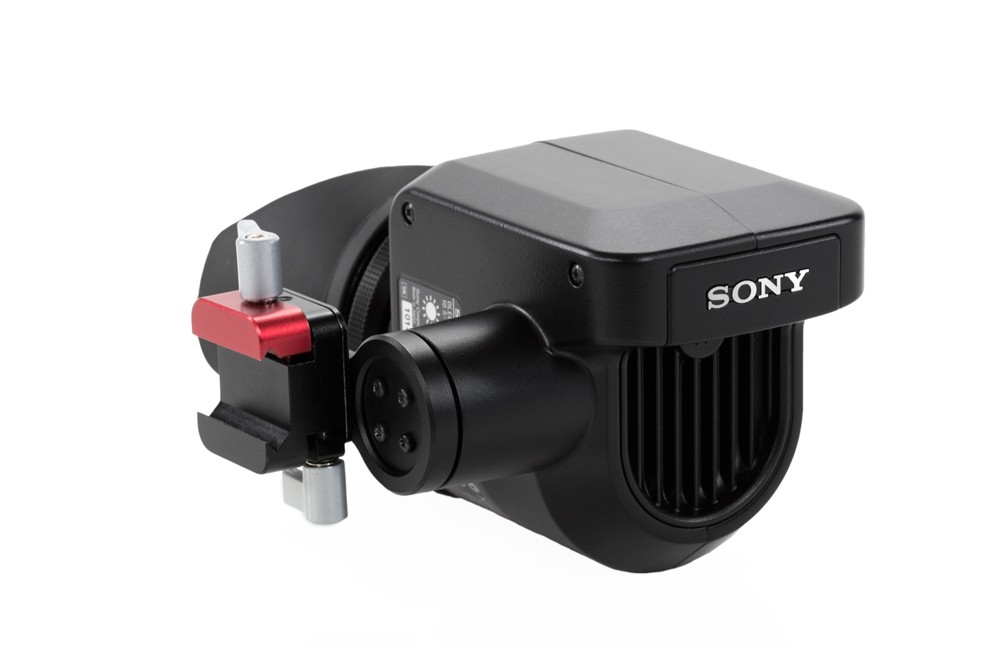

UVF Mount v2 (F55, F5) replaces the original Sony EVF bracket and accepts the Sony DVF-EL100 .7″ OLED and DVF-L350 3.5″ LCD Viewfinder directly. Three points of adjustment: 15mm Tube Clamp for tilt and distance to the camera, NATO thumbscrew (identified by red component) for positioning on NATO rail, and tension thumbscrew to adjust tilt of EVF. Tool-less design allows quick installation and removal of UVF v2 Sled. Safety pin prevents accidental removal. UVF v2 Sled can attach to any NATO-style rail.

NATO Arm length approximately 4″

15mm Tube Clamp bolts directly to two 1/4-20 screw holes spaced between 25mm and 36mm center to center.

Includes:
(2) 1/4-20 x 3/8″ screws

Specifications:
Weight: 282g (0.6 lbs)
Dimensions: 158.8 x 145.5 x 45.4 mm (6.3 x 5.7 x 1.8 in)

UVF Mount v2 (F55, F5) Instructions
