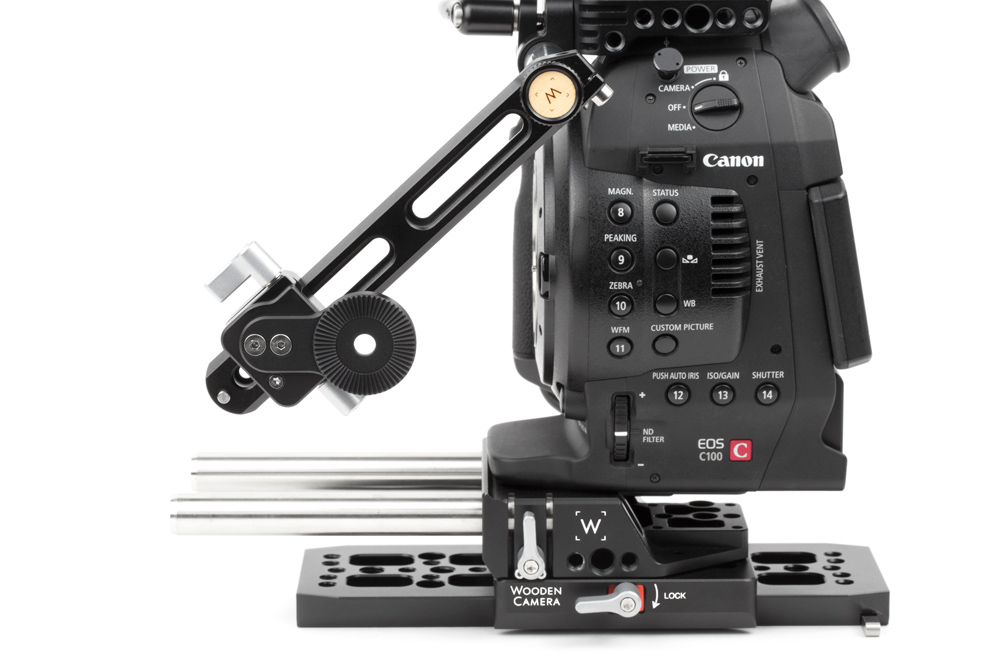

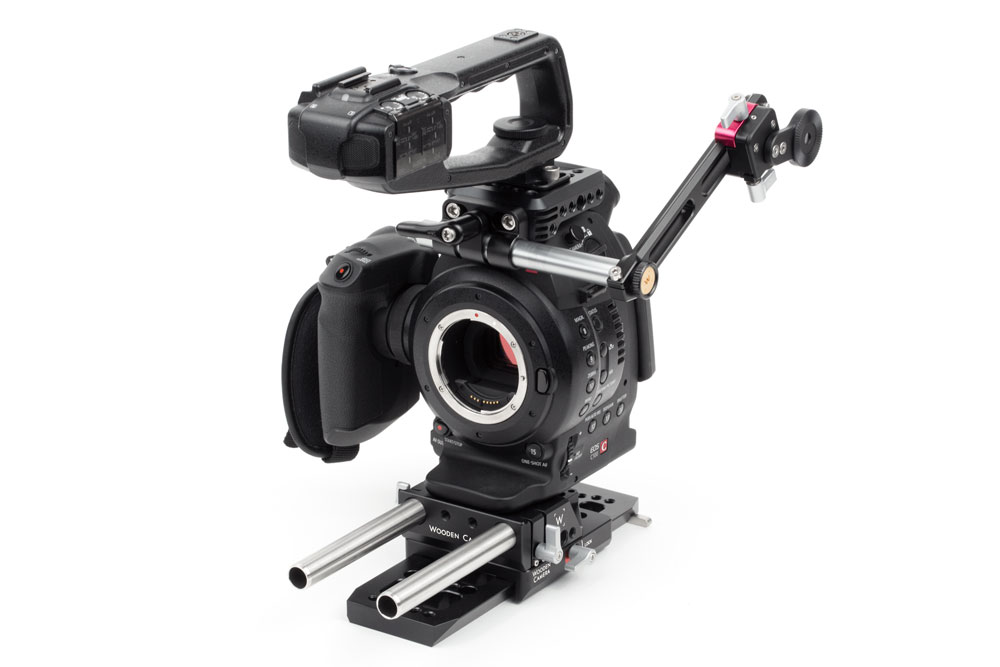

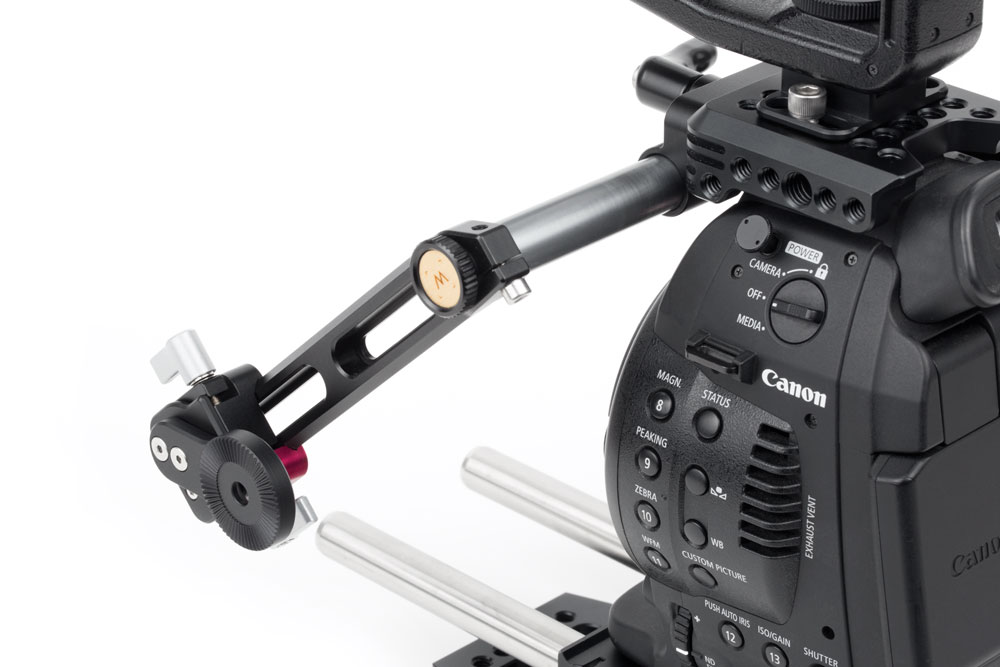

UVF Mount (ARRI Rosette) accepts EVFs or LCDs that utilize an ARRI standard rosette for attachment such as the Zacuto Gratical and F&V SpectraHD 4 EVF. Three points of adjustment: 15mm tube clamp for tilt and distance to the camera, NATO thumbscrew (identified by red component) for positioning on NATO rail, and tension thumbscrew to adjust tilt of EVF. Tool-less design allows quick installation and removal of UVF Sled. Safety pin prevents accidental removal. UVF Sled can attach directly to any NATO-style rail.

NATO Arm length approximately 5″

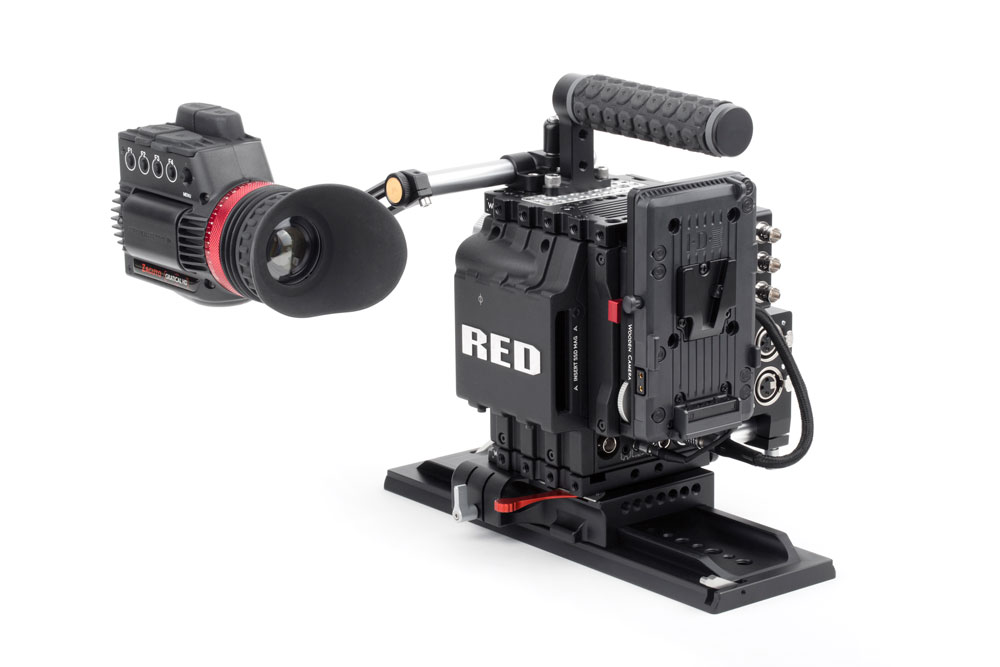

The included 15mm Tube Clamp bolts directly to two 1/4-20 screw holes spaced between 25mm and 36mm center to center. Can attach directly to RED Dragon/Epic/Scarlet and AJA CION. Can also attach to other cameras via Wooden Camera cages and cheeseplates.

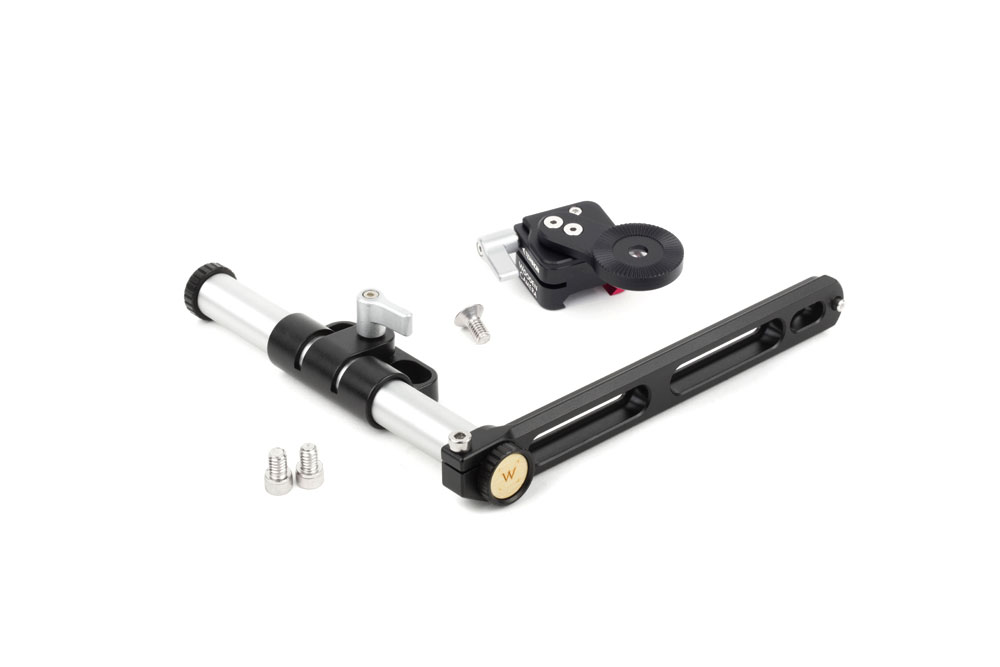

Includes:
(2) 1/4-20 x 3/8″ socket cap screws
(1) M6 x flat head socket screw

Specifications:
Weight: 320g (0.7 lbs)
Dimensions: 206.8 x 158.8 x 60.9 mm (8.1 x 6.3 x 2.4 in)

UVF Mount Mount (ARRI Rosette) Instructions
