IN STOCK Complete purchase by 3pm CST and order will ship same business day.

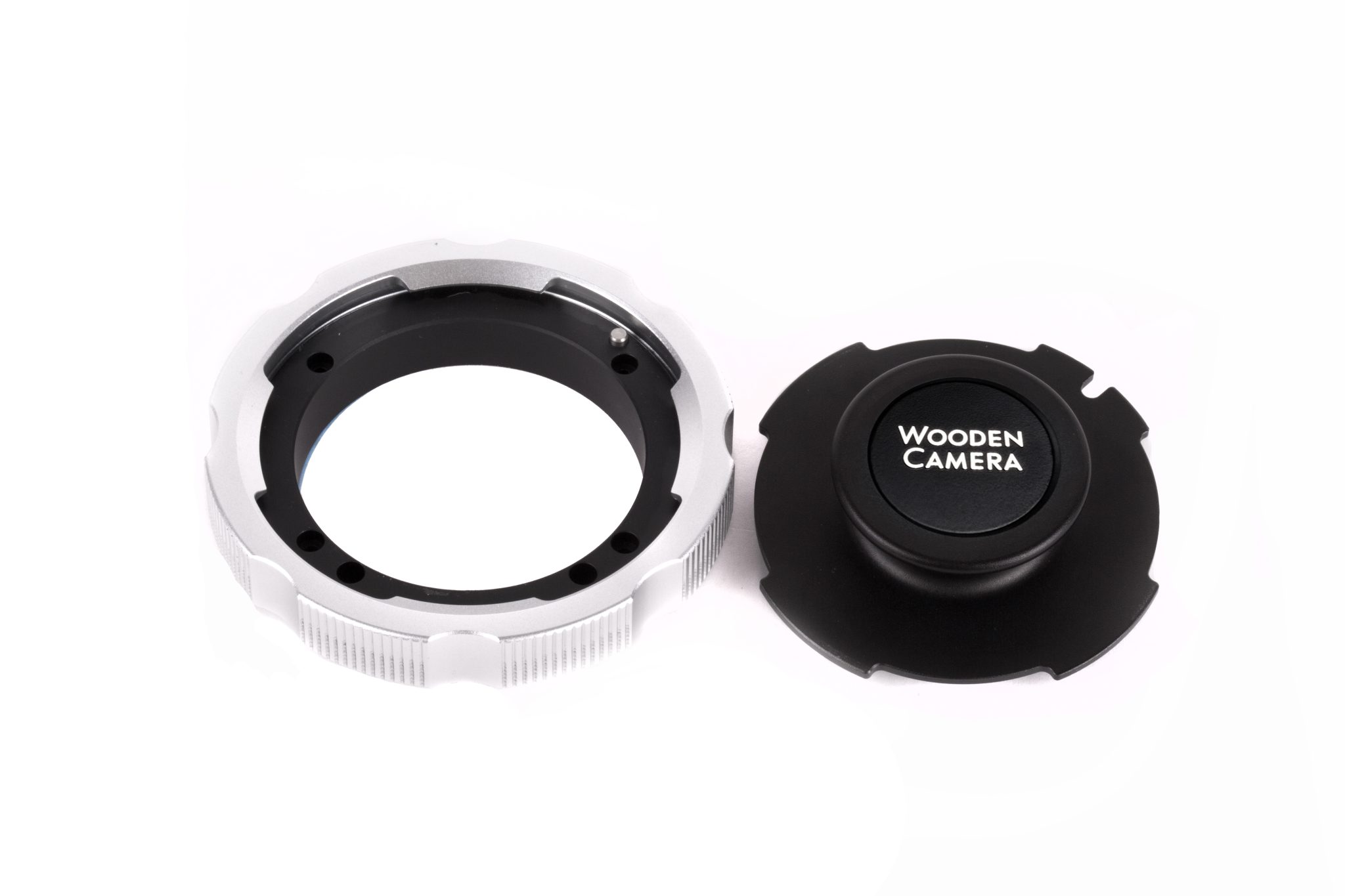

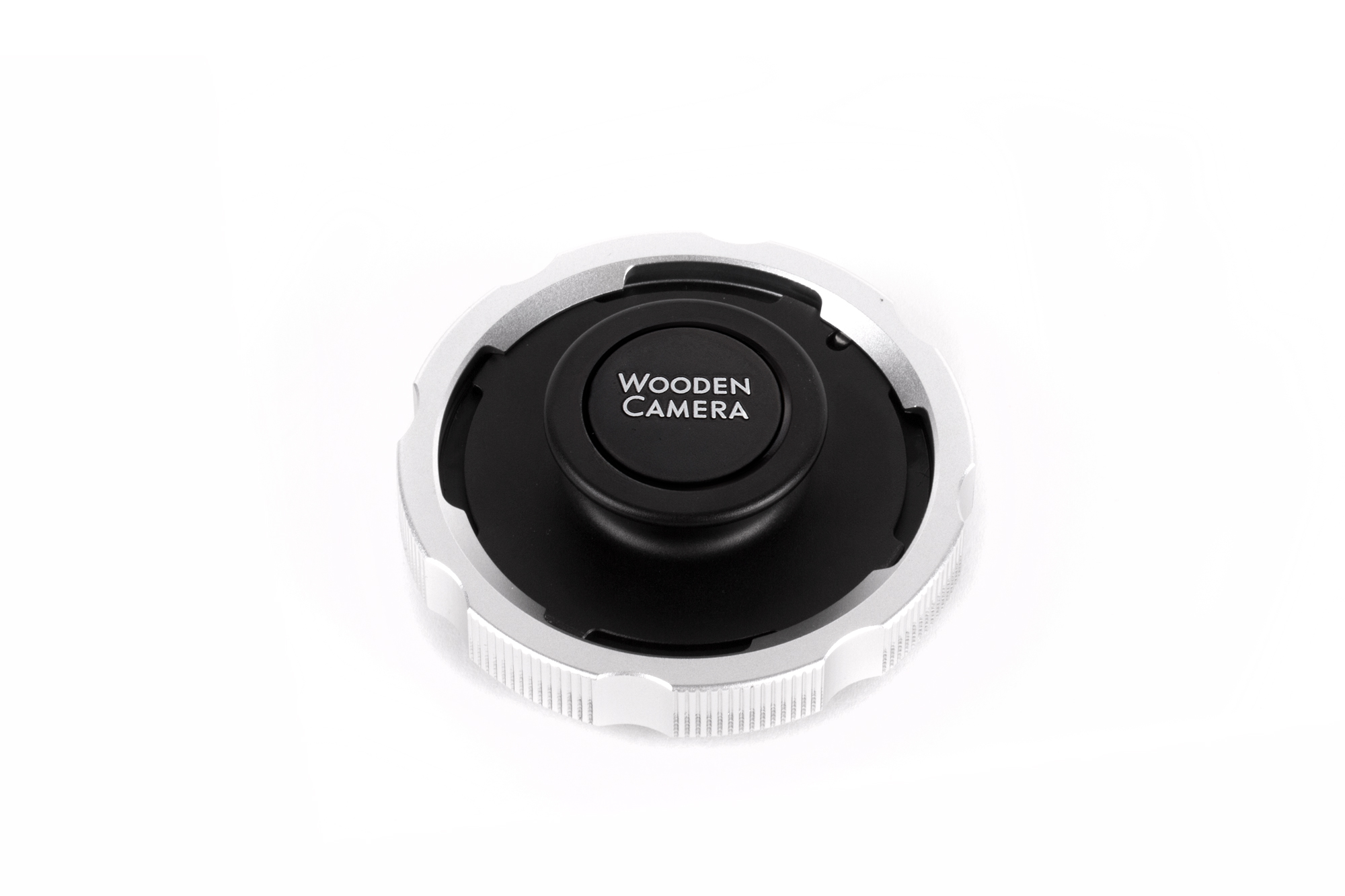

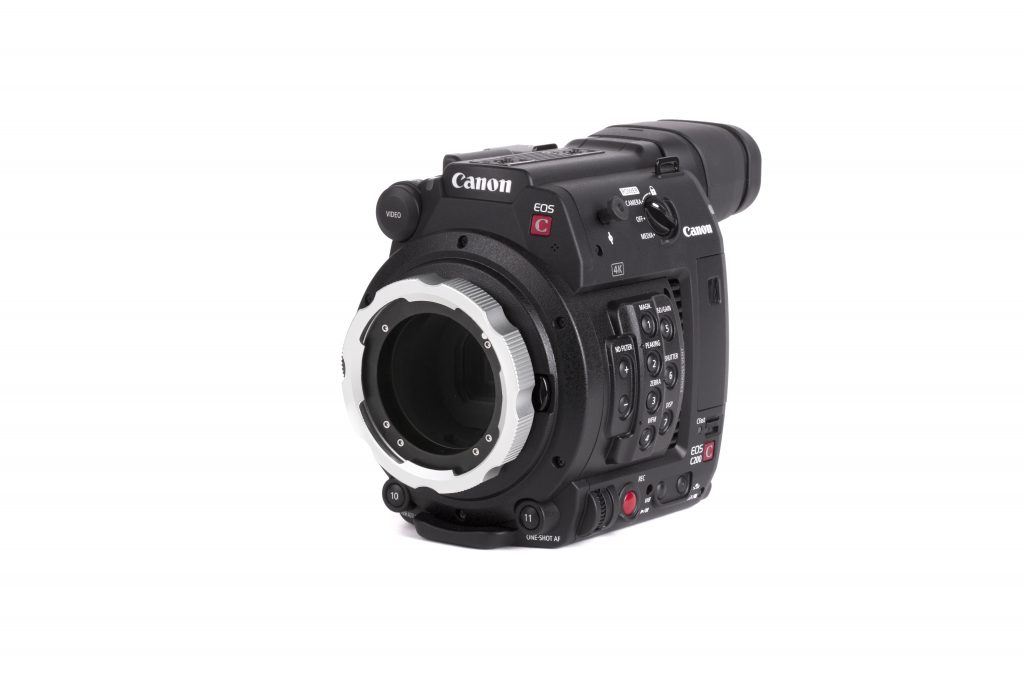

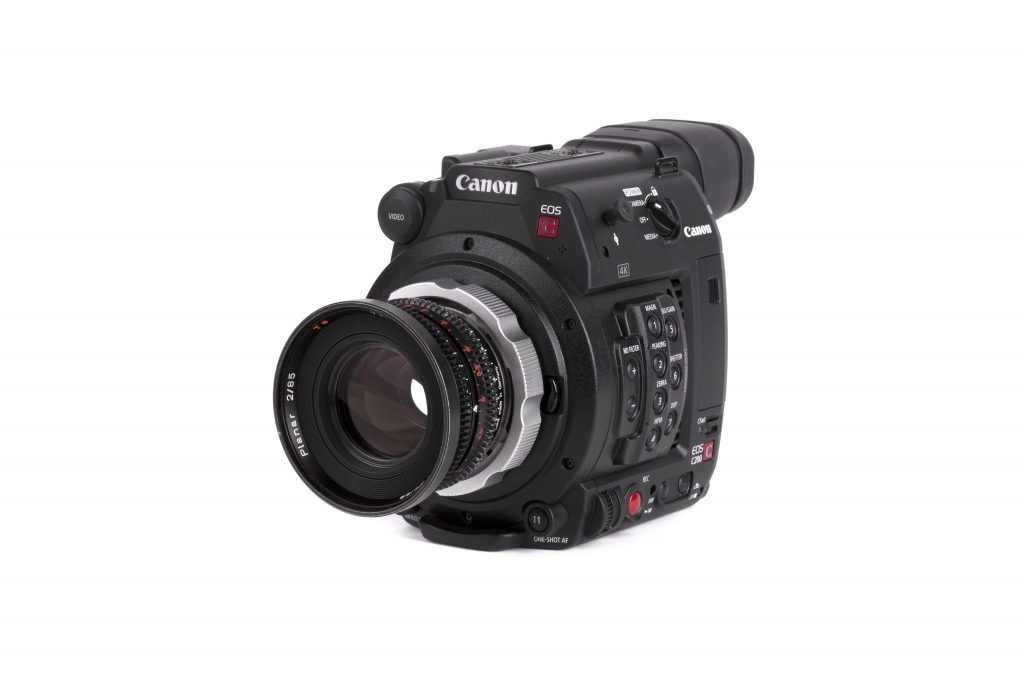

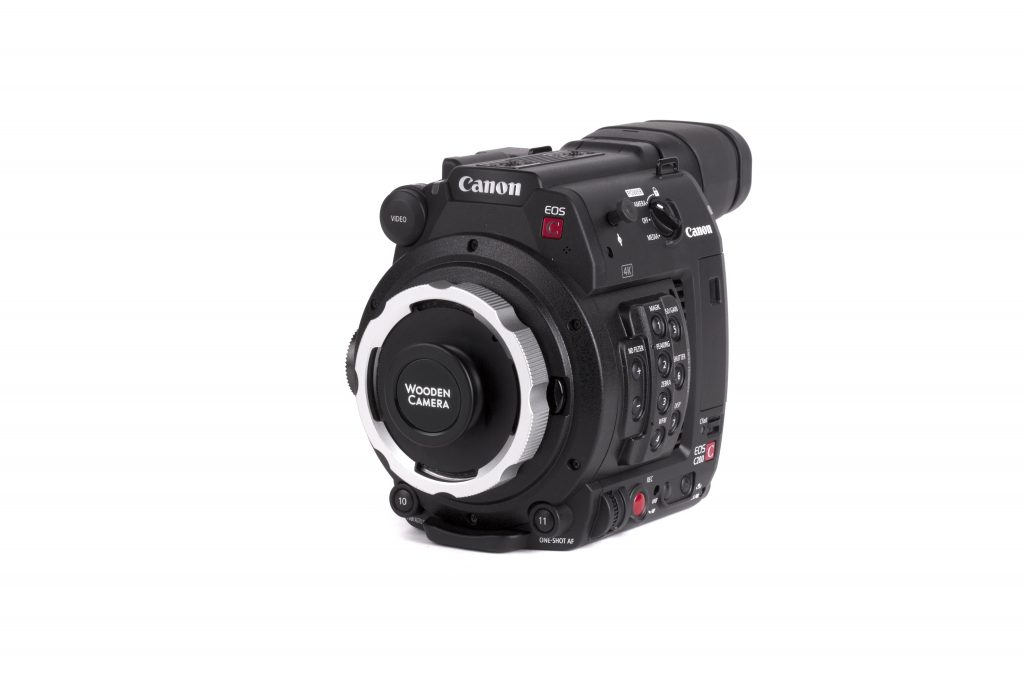

The Canon C200/C200B Modification Kit (Canon C200/C200B) allows users to convert their Canon C200/C200B camera to PL Mount through a short modification process. All necessary tools are included in the kit. The PL Mount is made of aircraft grade aluminum and includes the PL port cap. Shims are provided with the kit for adjusting back focus and the appropriate shims are installed prior to shipping. Further adjustment should not be needed but can be checked using a wide angle lens and a focus chart.

The modification process can be reversed! If you choose to go back to EF mount in the future, you can do it by reversing steps in the process.

With this kit, the modification is performed by the user. Optional WC installation service for an extra $250. Email info@woodencamera.com for more info.

Important Note: While the vast majority of lenses are compatible, due to the ND filter turret on the Canon C200, lenses with a rear protrusion longer than 33.5mm, measured from the PL flange, are not compatible.

This modification is not compatible with the C100, C100mkii, C300, C300mkii, C500 or C700.

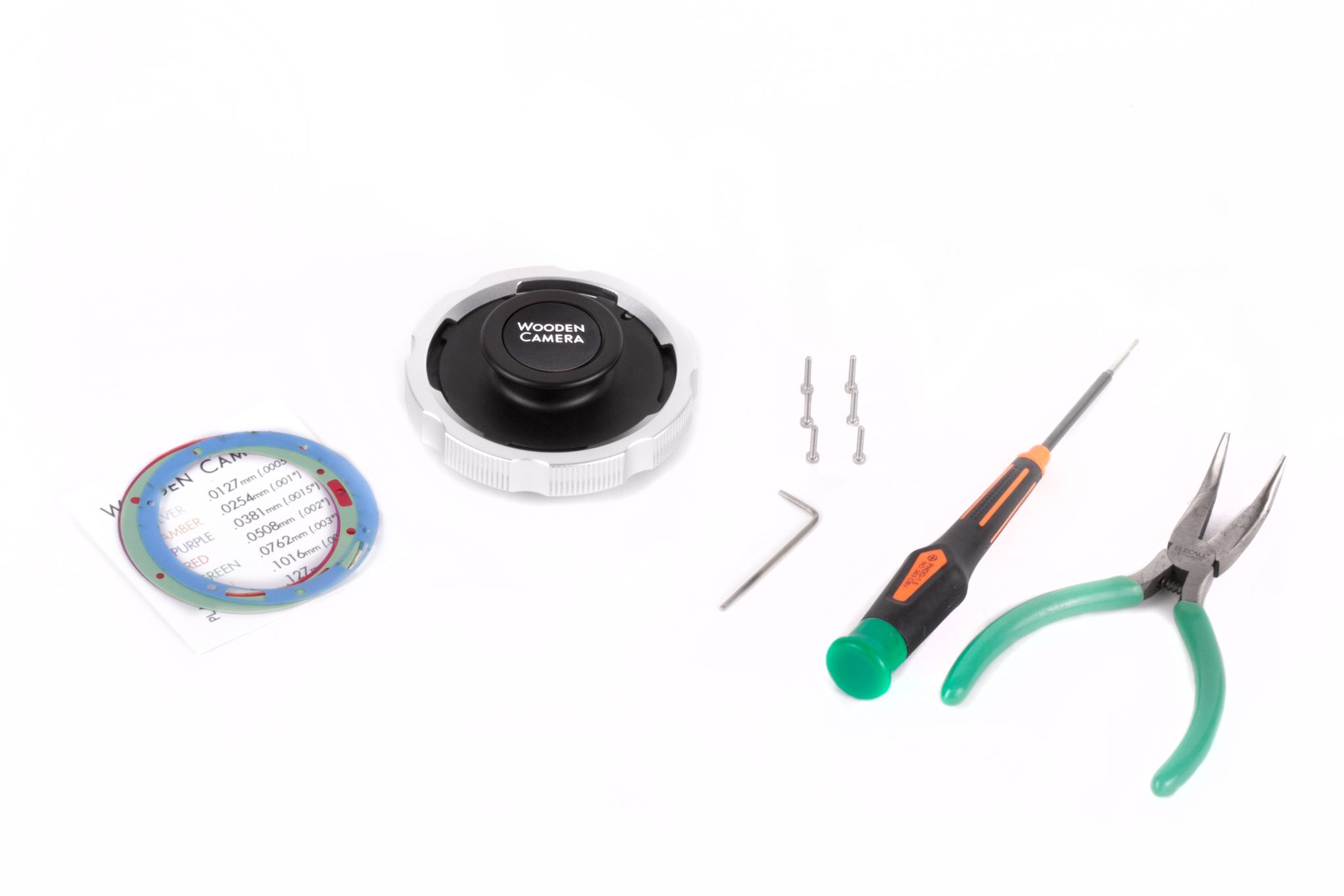

Includes:
6x M2 socket cap screws for installation
1x Shim set
1x Jeweler’s Screwdriver
1x Bent nose pliers

Camera is not included.

Shim set (stackable to achieve necessary thickness)

Silver .0127mm (0.0005″)
Amber .0254mm (0.001″)
Purple .0381mm (0.0015″)
Red .0508mm (0.002″)
Green .0762mm (0.003″)
Tan .1016mm (0.004″)
Blue .127mm (0.005″)

Specifications:
Weight: 251g (0.6 lbs)
Dimensions: 85.1 x 81.8 x 48 mm (3.4 x 3.2 x 1.9 in)

Combatibility
NON COMBATIBLE LENSES:
Lenses with a rear protrusion longer than 33.5mm
Angenieux Optimo DP Rouge 16-42mm
Angenieux Optimo DP Rouge 30-80mm
