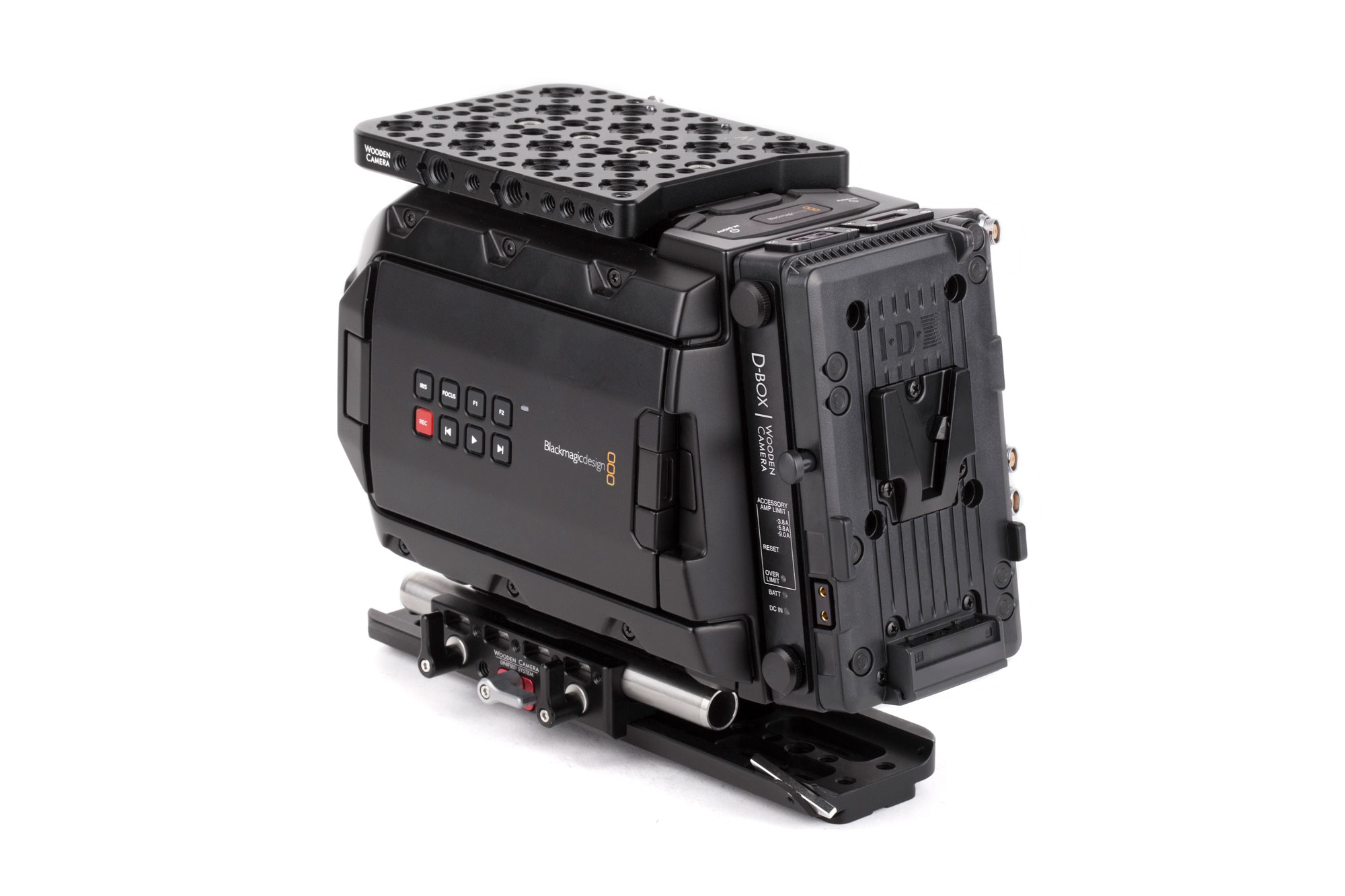

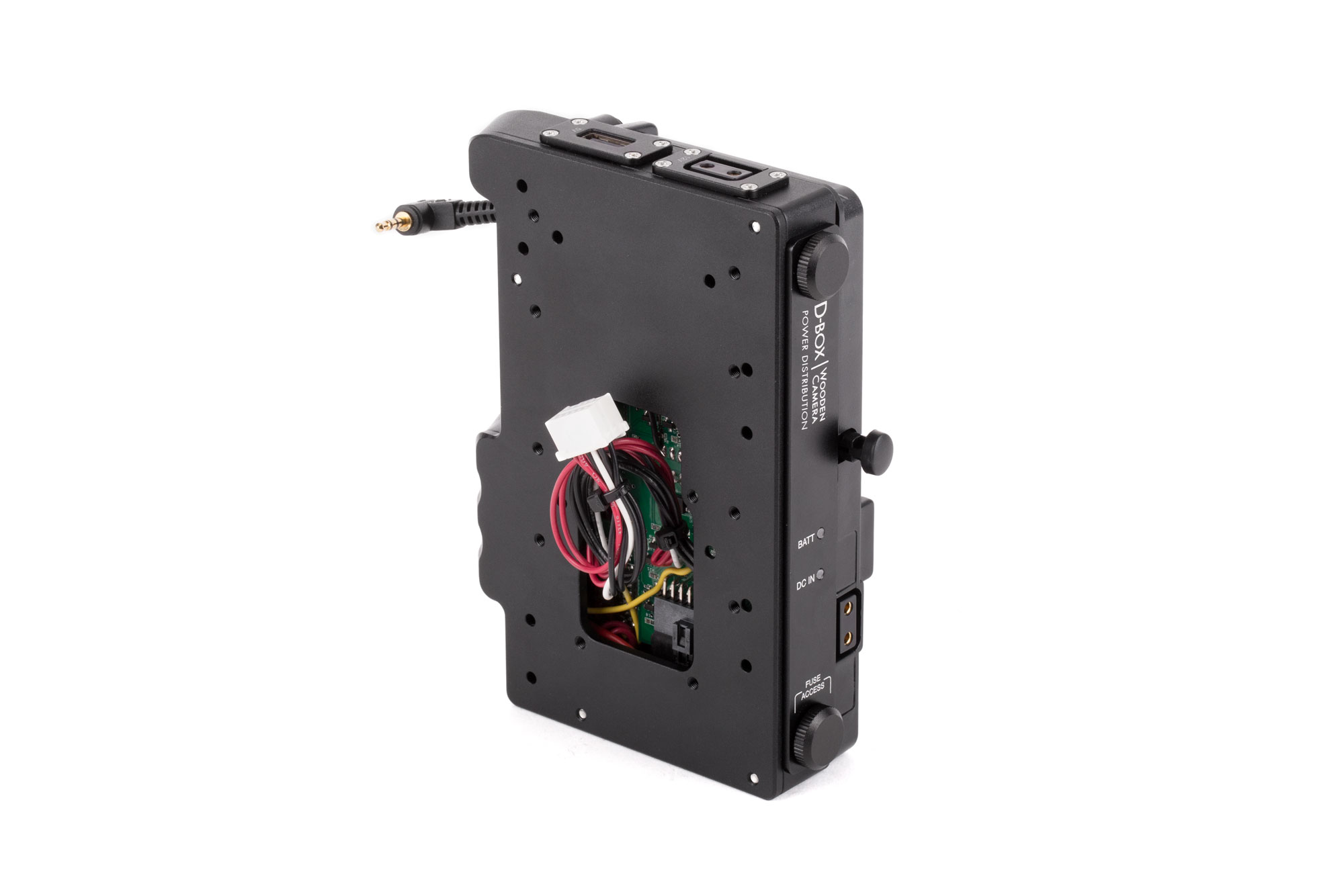

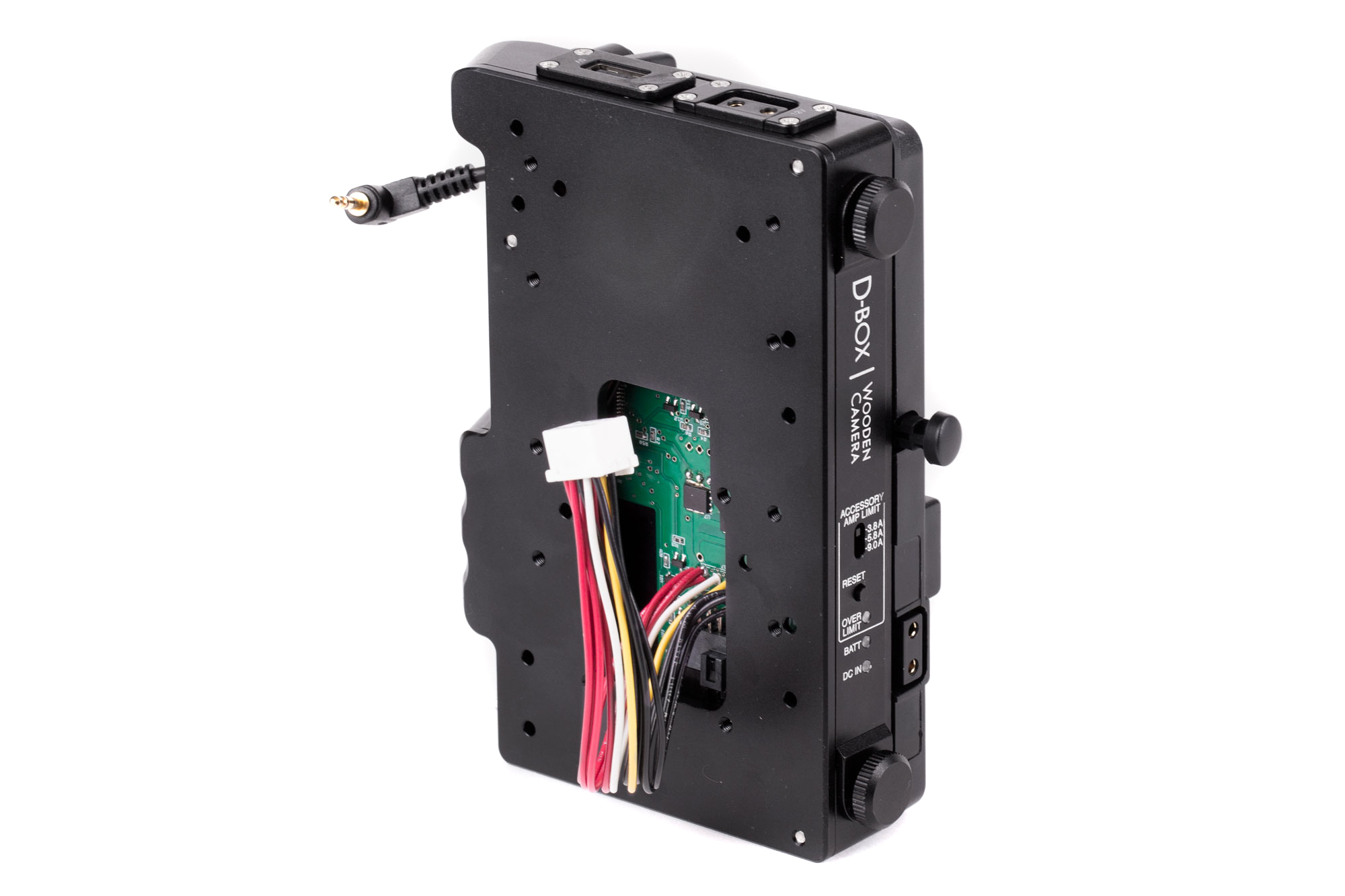

D-Box (URSA Mini, V-Mount) is a custom version of our popular D-Box that adds power distribution, standardized remote start/stop, and hot swap capability to the Blackmagic URSA Mini Pro, EF Mount, PL Mount, and B4 Mount cameras. The D-Box attaches directly to the back of the camera body using a special Molex connector eliminating external cabling. It also interfaces with the rear LANC port which is how the D-Box controls the camera’s run/stop.

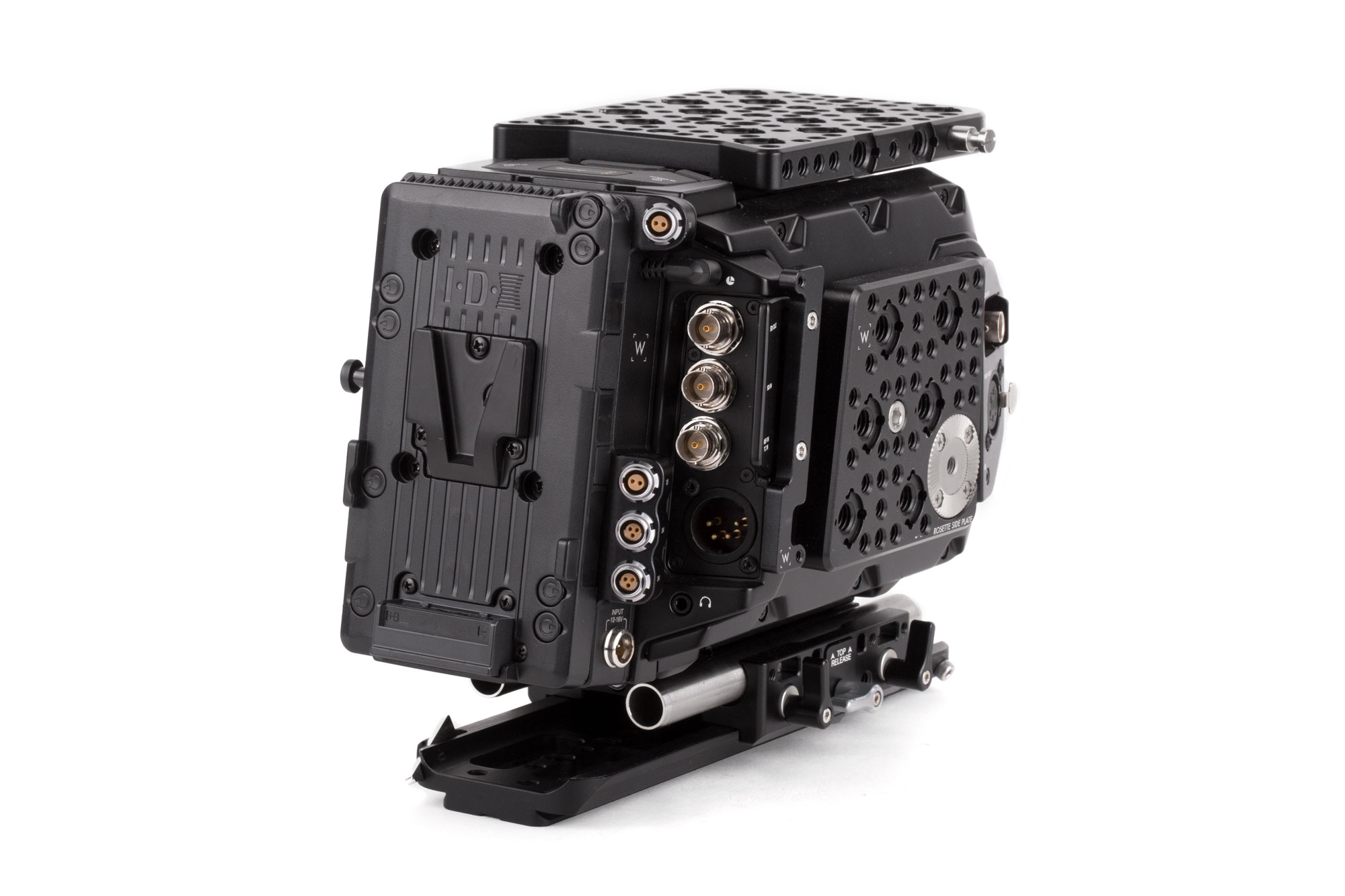

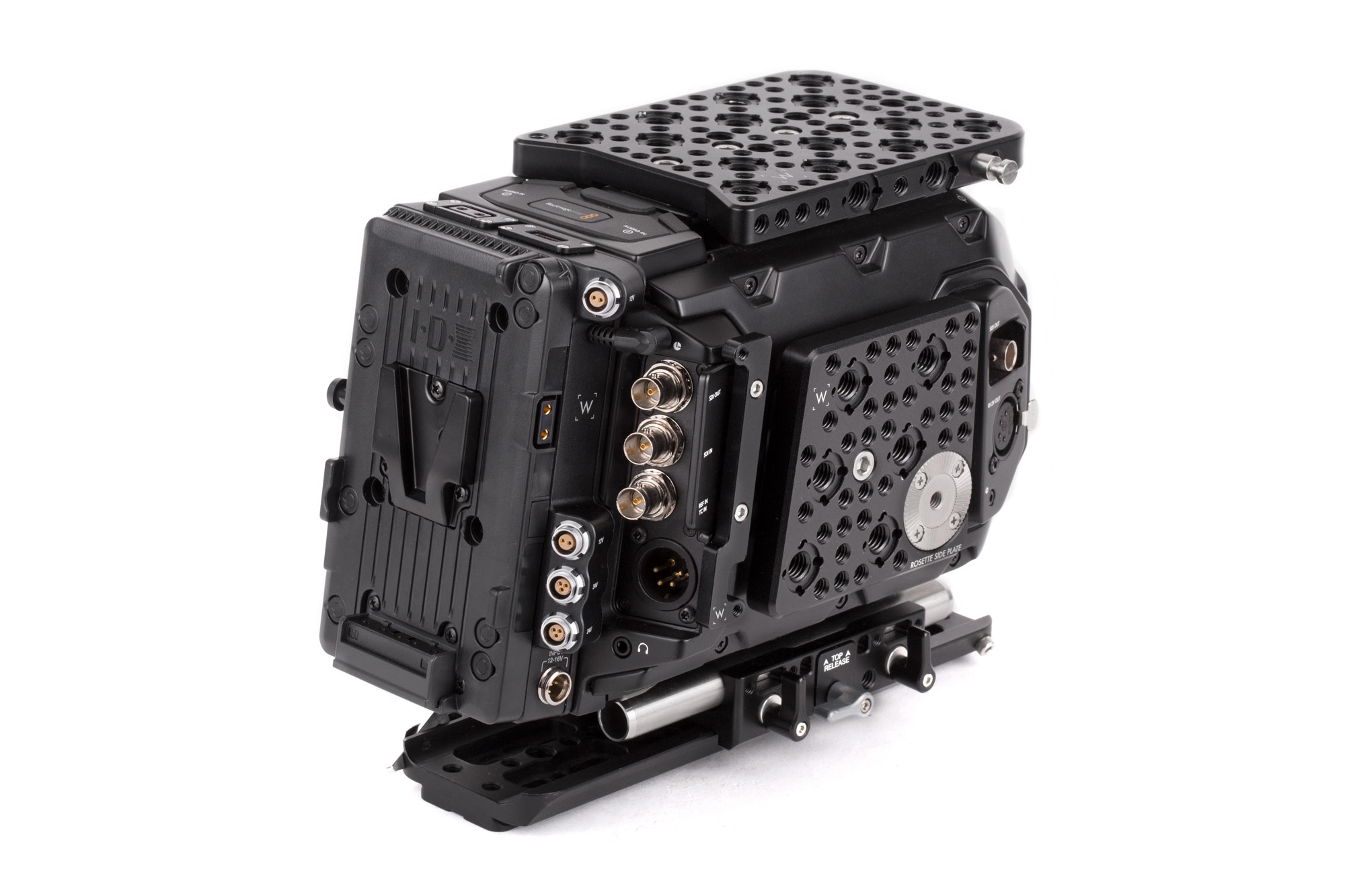

Connectors on the D-Box are contoured inline with the URSA Mini body, streamlining port connections and cable management. The module also provides two 3pin Fischer ports, allowing start/stop with any ARRI standard trigger device.?

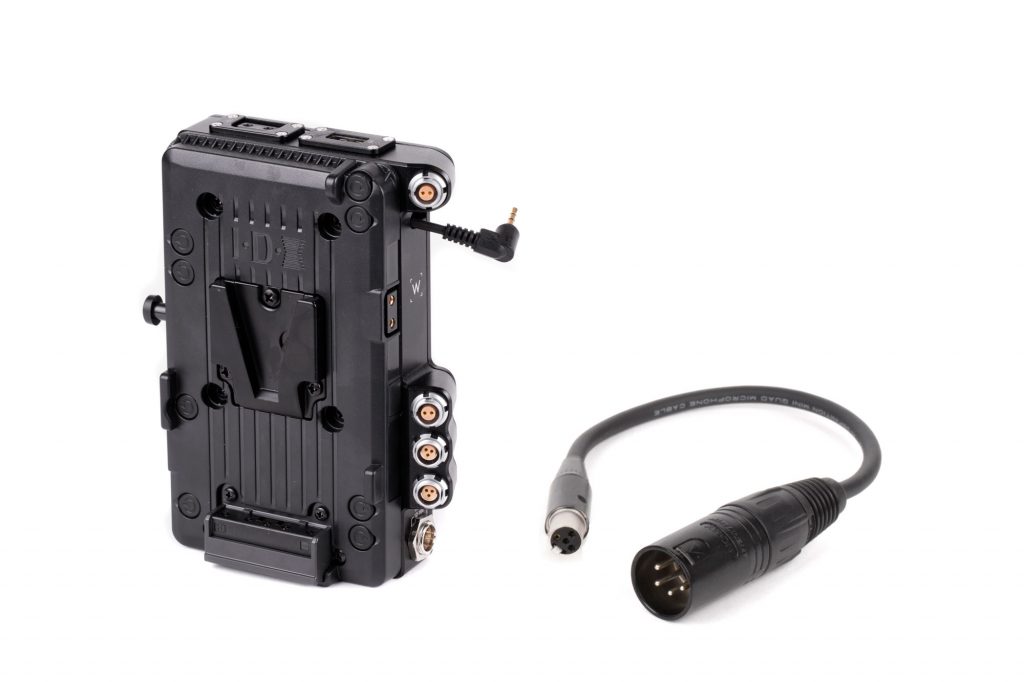

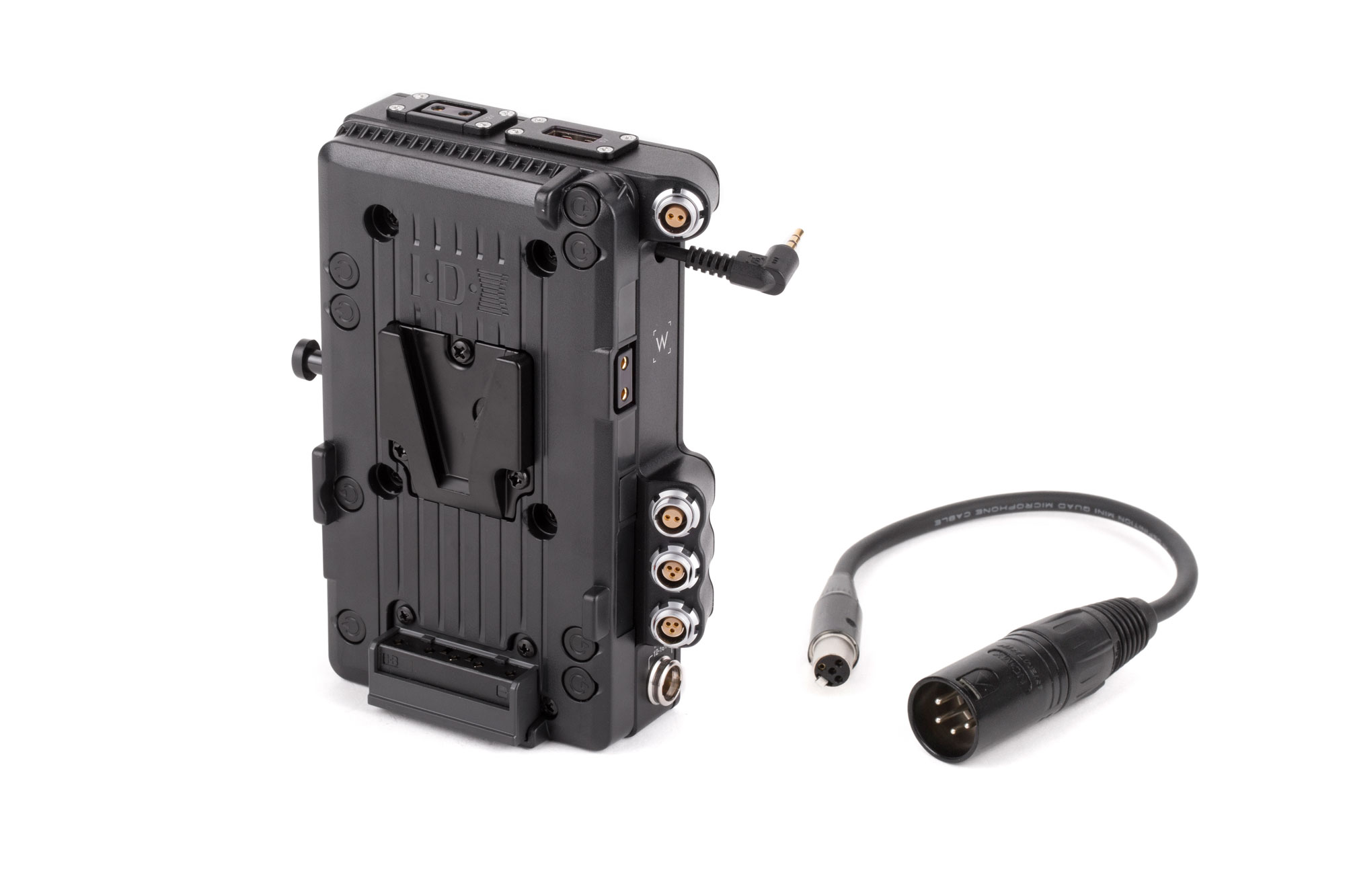

The D-Box is equipped with a Mini 4pin XLR DC Input and includes a?Mini 4pin XLR to Full 4pin XLR?pigtail cable allowing an?AC power supply?or?external power plate?to be connected to power the camera and accessories during a battery change. When both battery and DC input are utilized, the D-Box defaults to the DC input, leaving the battery fully charged.?The OEM AC Power Supply provided with the Ursa Mini Pro does not have a high enough amperage rating to power a D-box with accessories or perform a Hot Swap from battery power to DC input. Wooden Camera offers a higher rated unit for these requirements:?15V Power Supply (4pin XLR Female).

Overview:
Authentic IDX V-Mount plate provides 2x D-Tap (unregulated) on the power plate itself but we should note that one D-Tap may be obscured by the right side BNC connectors when in use. The camera receives an unfused connection to the power source and the D-Box connectors share a 7.5A fuse. When using D-Box battery modules it is important to know what amount of power your batteries are capable of providing. Most high-end cinema batteries can supply up to 10A with the URSA Mini camera generally consuming 3-4A in standard configuration. Although the remaining power is available from the D-Taps, LEMO compatible connectors, Fischers, etc., it is best to limit the power draw to 5A or less for best results. Consuming more power than a battery is capable of providing will cause the battery to shut itself off, killing the camera and accessory power.

D-Box Connections:

1. D-Tap – 12V Unregulated

2. USB – 5V Regulated

3. 2 pin LEMO compatible connector – 12V Unregulated
– ARRI standard wiring

4. 2 pin LEMO compatible connector – 12V Unregulated
– ARRI standard wiring

5. 3 pin Fischer – 24V Regulated
– Regulator built in to convert battery voltage to 24V
– Maximum 2A continuous (3A surge) shared between the two 3pin Fischers
– ARRI standard start/stop capabilities

6. 3 pin Fischer – 24V Regulated
– Regulator built in to convert battery voltage to 24V
– Maximum 2A continuous (3A surge) shared between the two 3pin Fischers
– ARRI standard start/stop capabilities

7. DC Input – 12-16V
– DC input on the D-Box is a Mini 4pin XLR but a pigtail cable is included to full-size 4pin XLR
– Priority is given to DC Input to preserve battery charge when both sources connected

D-Box (URSA Mini, V-Mount) Instructions

Connectors used in this assembly are not manufactured by LEMO or Fischer but are made to the same specifications and are LEMO and Fischer compatible.

Please Note:?In addition to the digital or glass fuse governing the output panels of the D-box, his product contains a secondary fuse for the D-tap ports of the attached battery plate. This fuse is located in a fuse holder within the plate and replacements can be purchased here:?F10A Fast Blow Fuse
