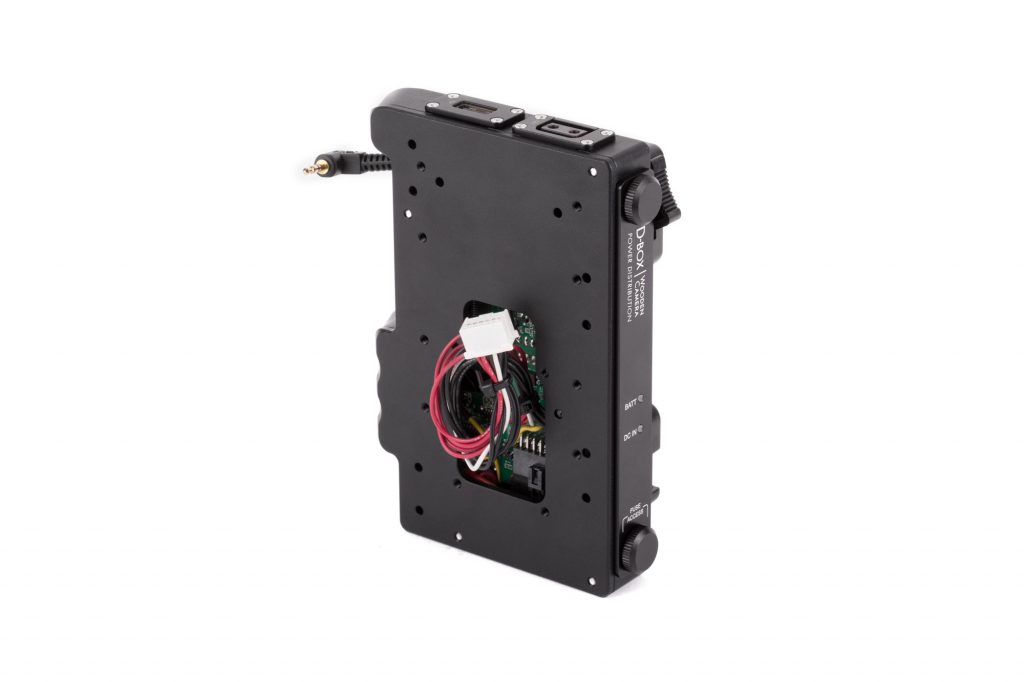

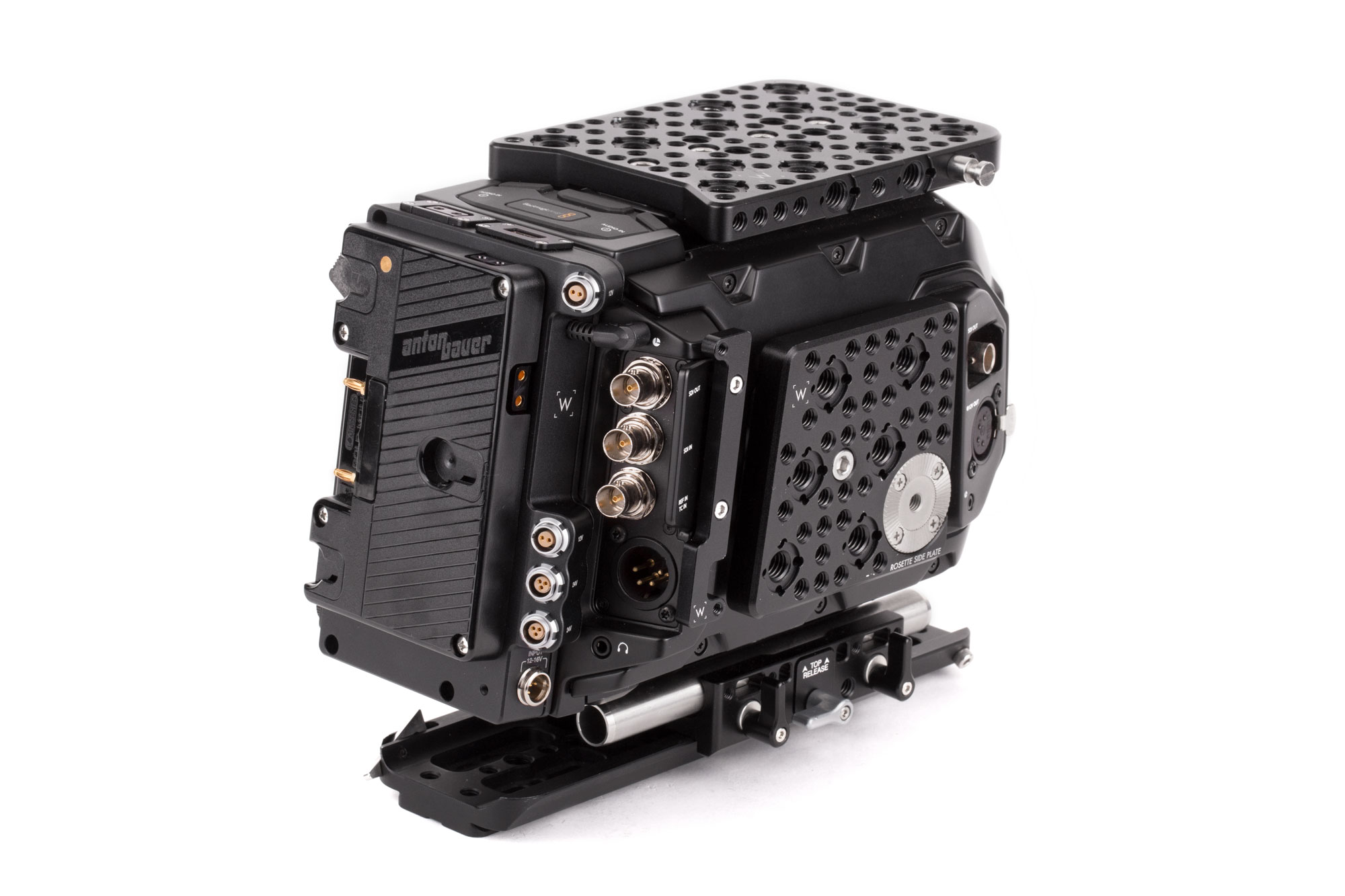

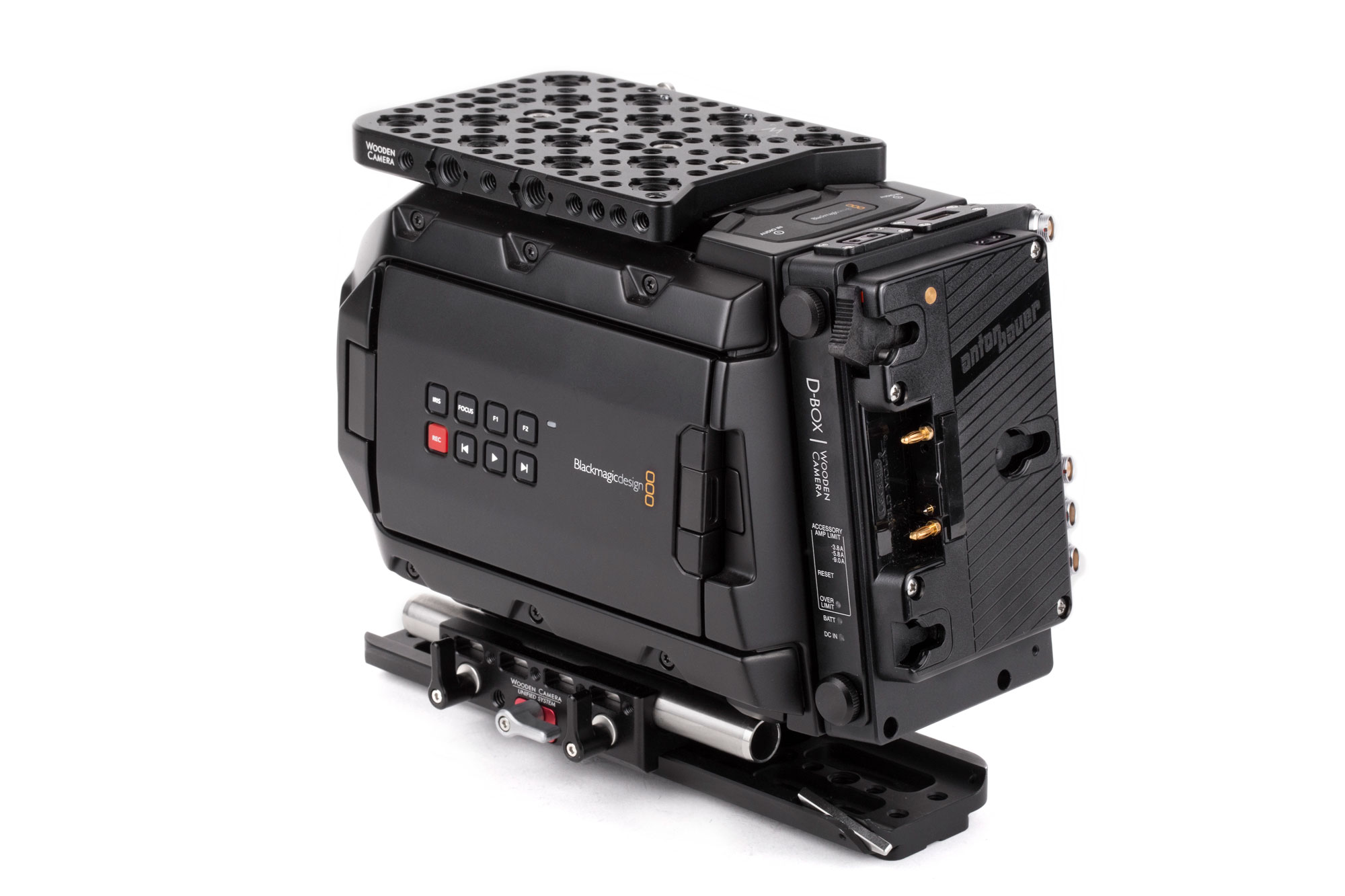

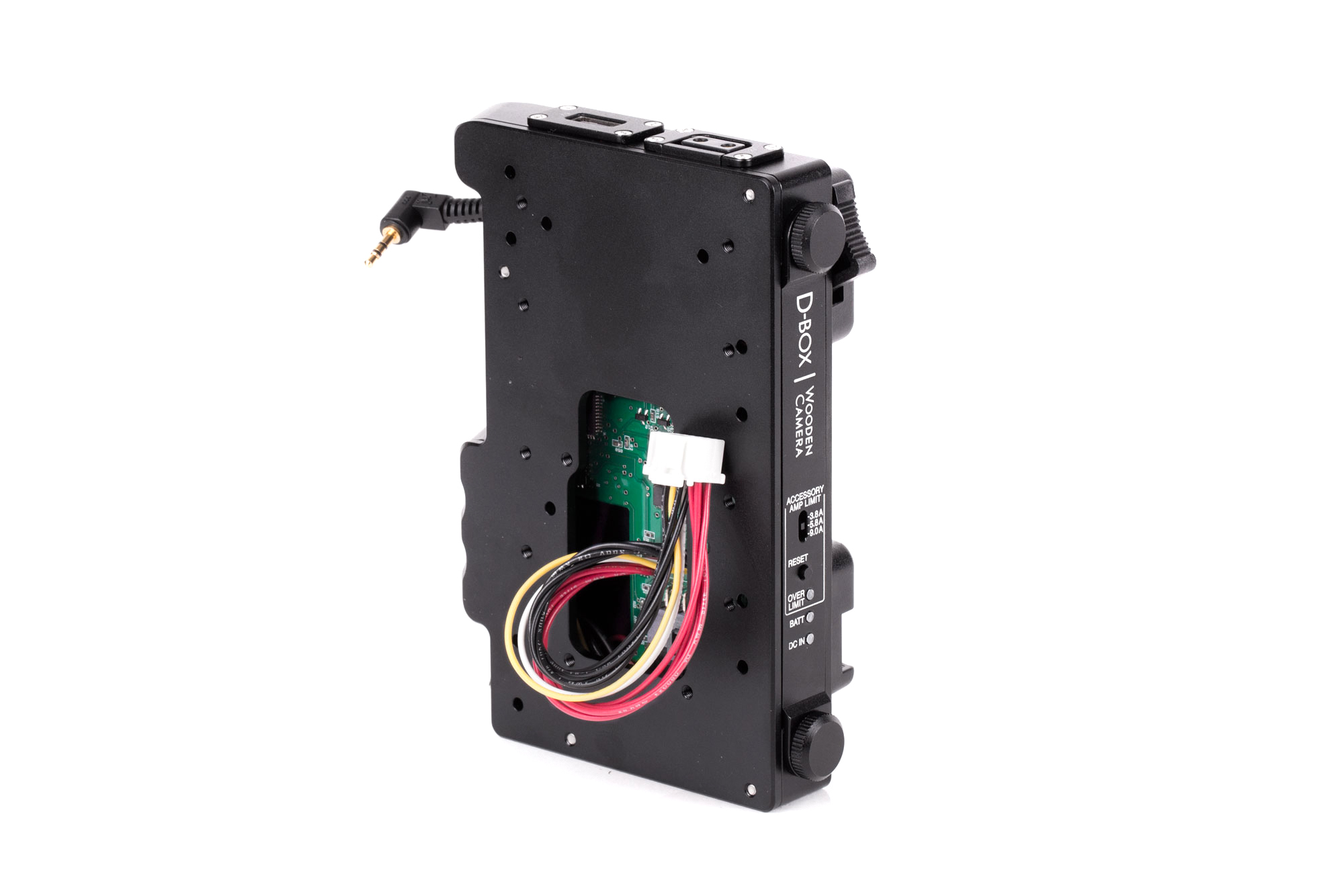

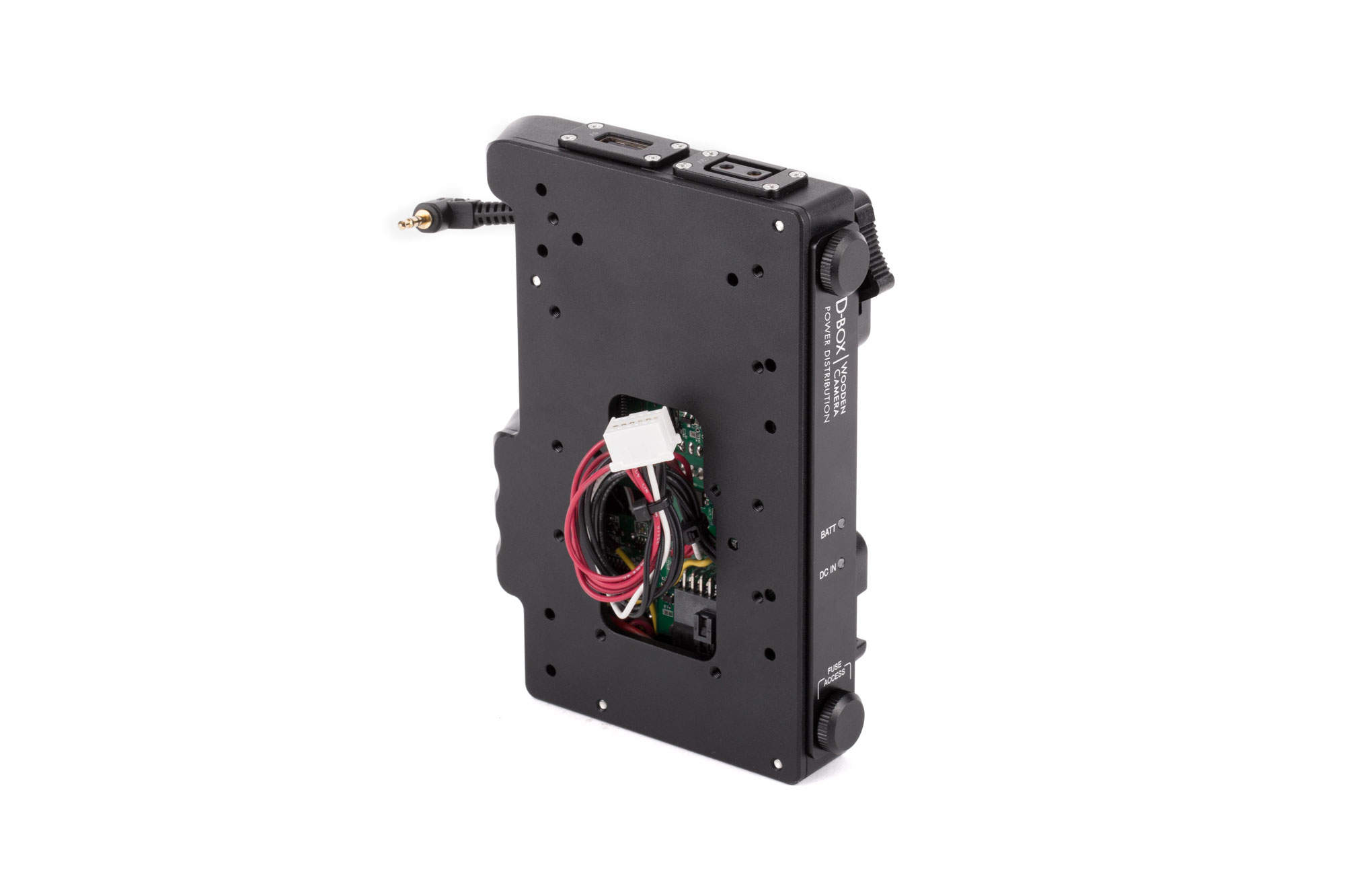

D-Box (URSA Mini, Gold Mount) is a custom version of our popular D-Box that adds power distribution, standardized remote start/stop, and hot swap capability to the Blackmagic URSA Mini Pro, EF Mount, PL Mount, and B4 Mount cameras. The D-Box attaches directly to the back of the camera body using a special Molex connector eliminating external cabling. It also interfaces with the rear LANC port which is how the D-Box controls the camera’s run/stop.

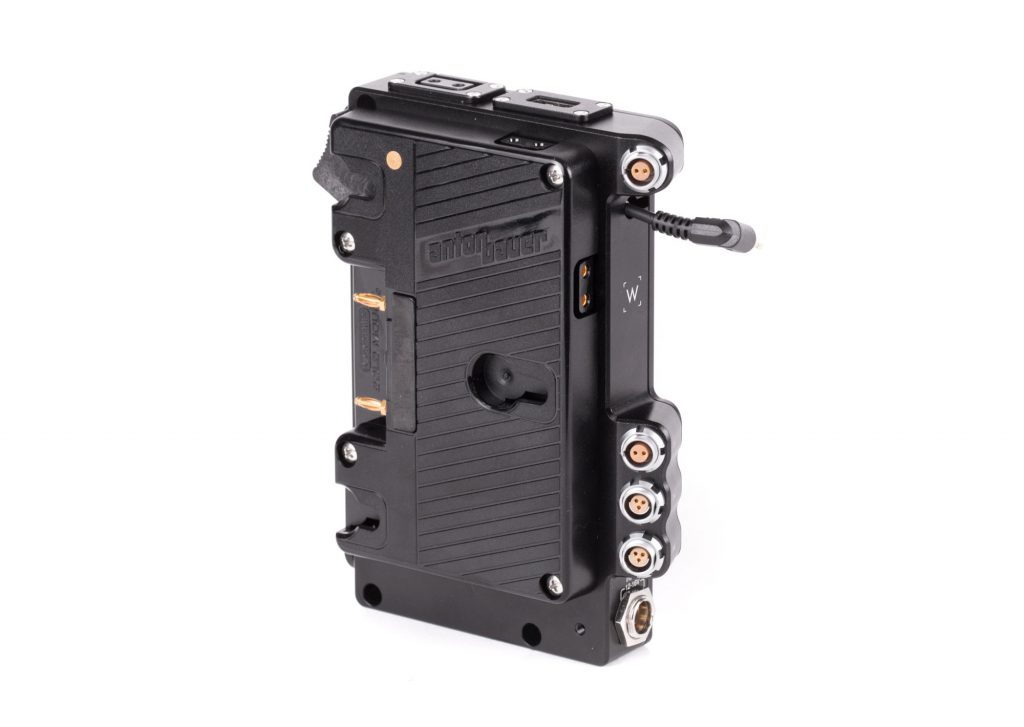

Connectors on the D-Box are contoured inline with the URSA Mini body, streamlining port connections and cable management. The module also provides two 3pin Fischer ports, allowing start/stop with any ARRI standard trigger device.

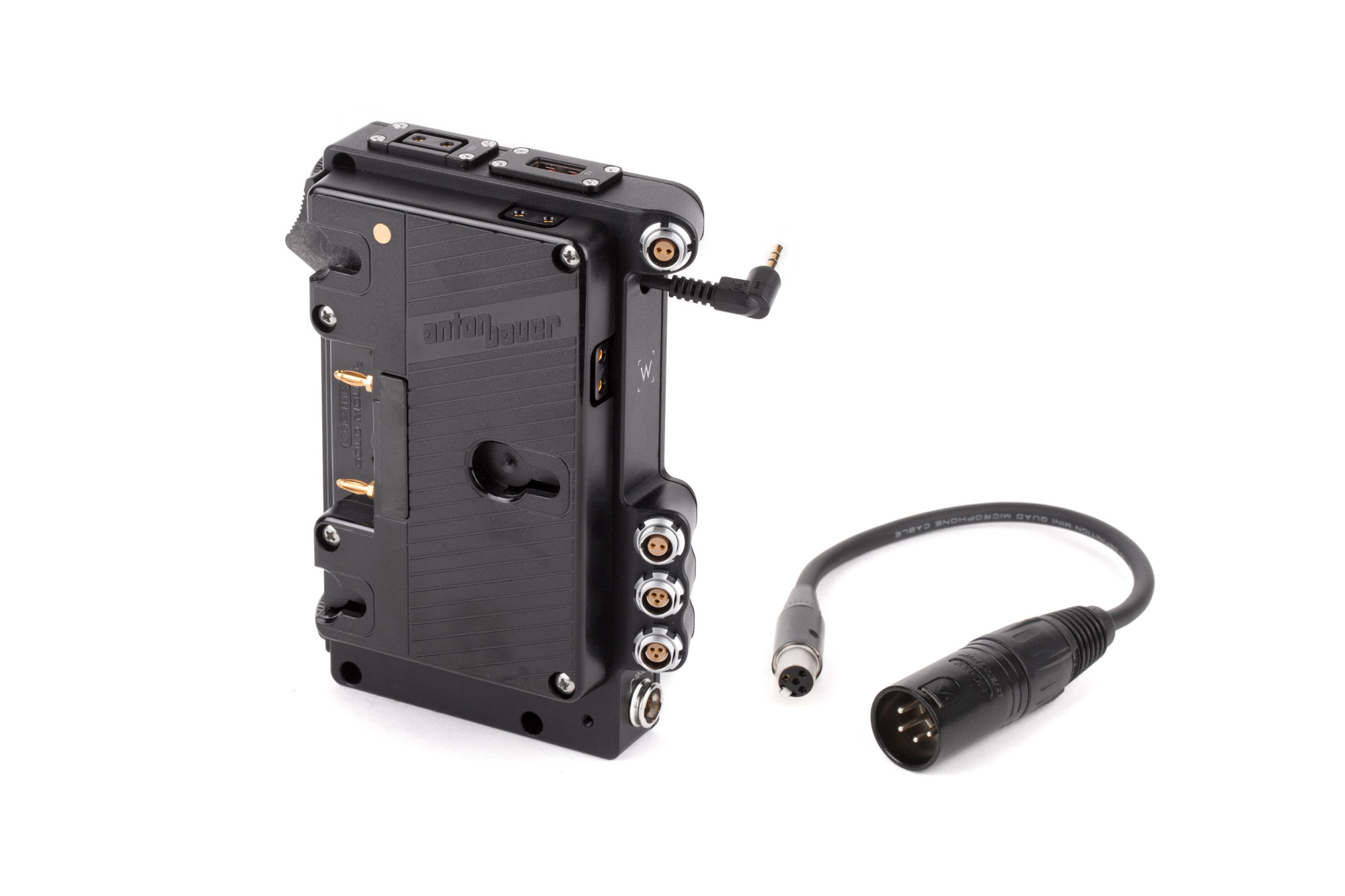

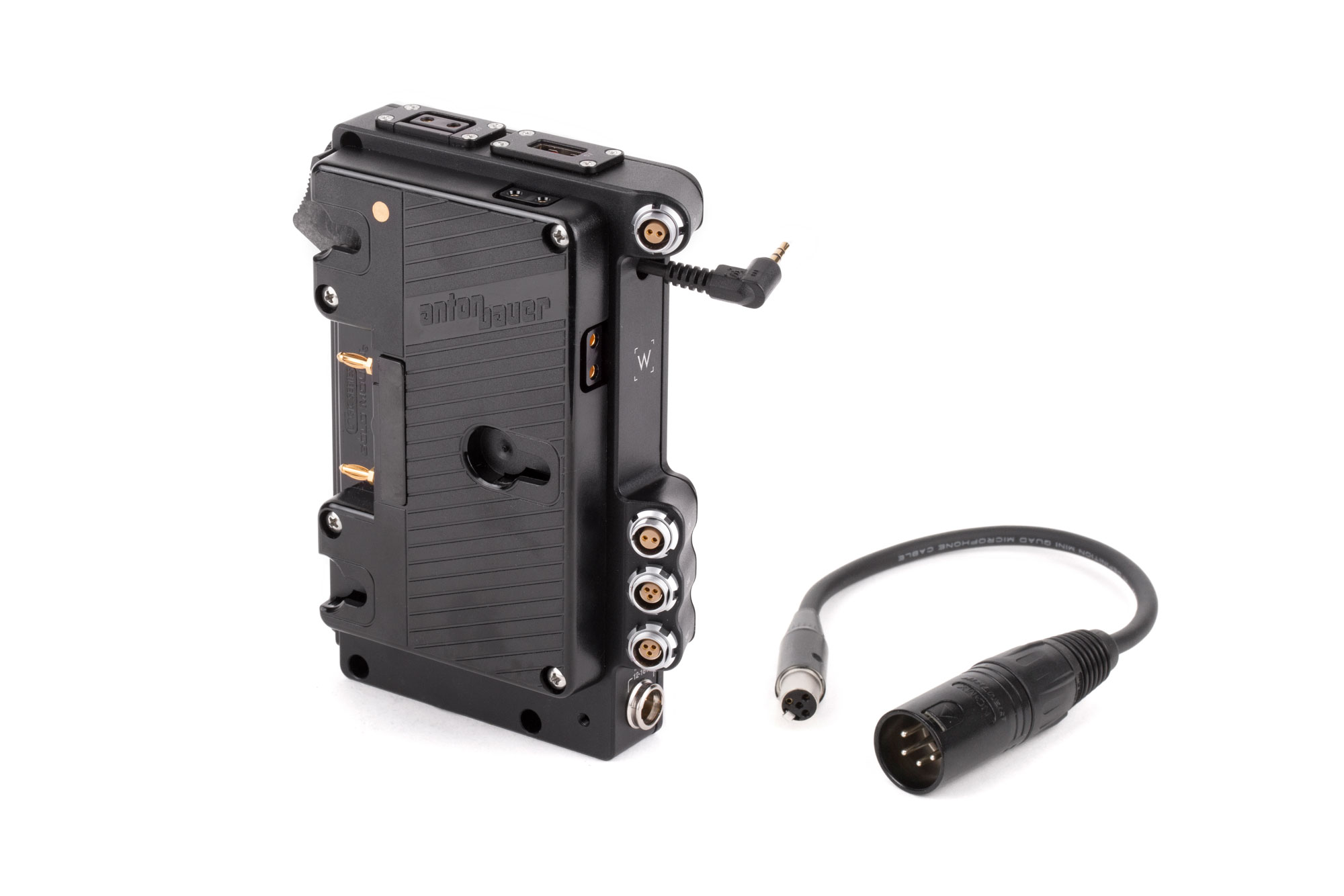

The D-Box is equipped with a Mini 4pin XLR DC Input and includes a Mini 4pin XLR to Full 4pin XLR pigtail cable allowing an AC power supply or external power plate to be connected to power the camera and accessories during a battery change. When both battery and DC input are utilized, the D-Box defaults to the DC input, leaving the battery fully charged. The OEM AC Power Supply provided with the Ursa Mini Pro does not have a high enough amperage rating to power a D-box with accessories or perform a Hot Swap from battery power to DC input. Wooden Camera offers a higher rated unit for these requirements:?15V Power Supply (4pin XLR Female).

Overview:
Authentic Anton Bauer Gold Mount plate provides 2x D-Tap (unregulated) on the power plate itself but we should note that one D-Tap may be obscured by the right side BNC connectors when in use. The camera receives an unfused connection to the power source and the D-Box connectors share a 7.5A fuse. When using D-Box battery modules it is important to know what amount of power your batteries are capable of providing. Most high-end cinema batteries can supply up to 10A with the URSA Mini camera generally consuming 3-4A in standard configuration. Although the remaining power is available from the D-Taps, LEMO compatible connectors, Fischers, etc., it is best to limit the power draw to 5A or less for best results. Consuming more power than a battery is capable of providing will cause the battery to shut itself off, killing the camera and accessory power.

D-Box Connections:

1. D-Tap – 12V Unregulated

2. USB – 5V Regulated

3. 2 pin LEMO compatible connector – 12V Unregulated– ARRI standard wiring

4. 2 pin LEMO compatible connector – 12V Unregulated
– ARRI standard wiring

5. 3 pin Fischer – 24V Regulated
– Regulator built in to convert battery voltage to 24V
– Maximum 2A continuous (3A surge) shared between the two 3pin Fischers
– ARRI standard start/stop capabilities

6. 3 pin Fischer – 24V Regulated
– Regulator built in to convert battery voltage to 24V
– Maximum 2A continuous (3A surge) shared between the two 3pin Fischers
– ARRI standard start/stop capabilities

7. DC Input – 12-16V
– DC input on the D-Box is a Mini 4pin XLR but a pigtail cable is included to full-size 4pin XLR
– Priority is given to DC Input to preserve battery charge when both sources connected?

Connectors used in this assembly are not manufactured by LEMO or Fischer but are made to the same specifications and are LEMO and Fischer compatible.

Please Note:?In addition to the digital or glass fuse governing the output panels of the D-box, his product contains a secondary fuse for the D-tap ports of the attached battery plate. This fuse is located in a fuse holder within the plate and replacements can be purchased here:?F10A Fast Blow Fuse

D-Box (URSA Mini, Gold Mount) Instructions
