IN STOCK Complete purchase by 3pm CST and order will ship same business day.

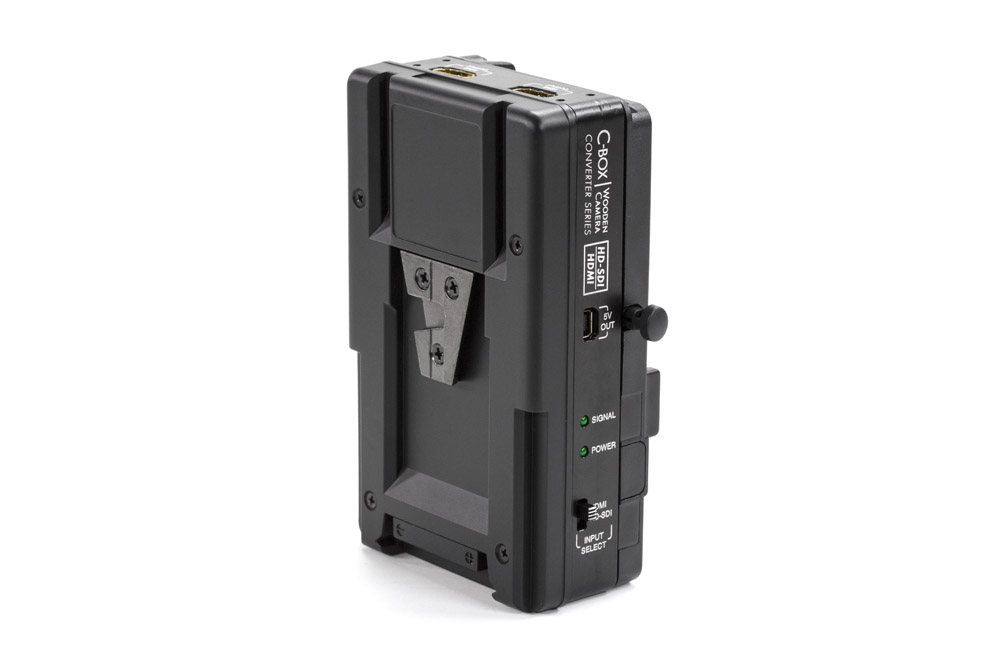

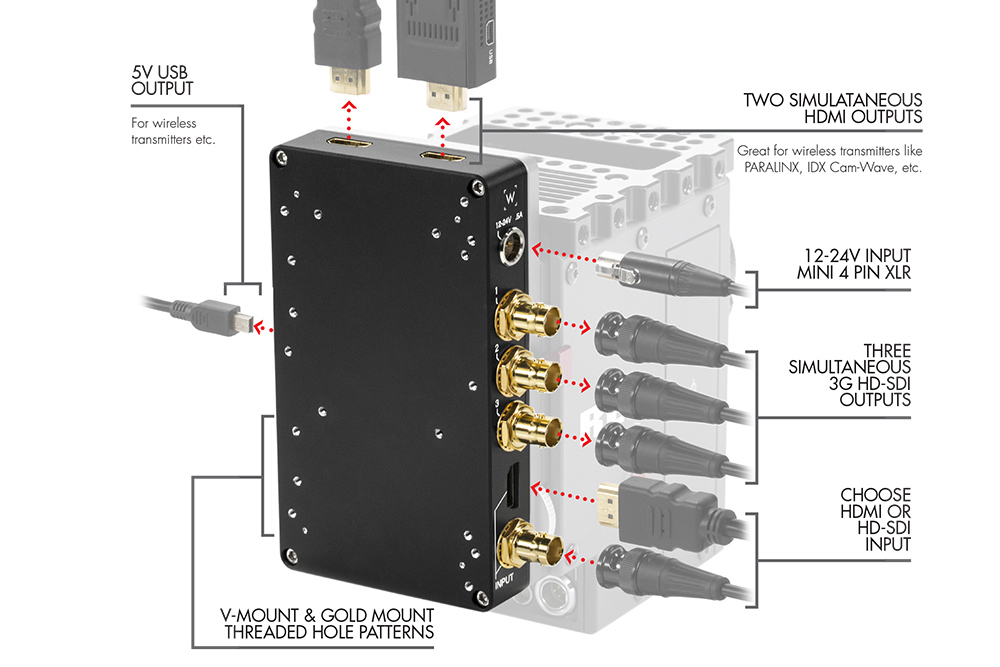

C-Box (Converter, V-Mount) accepts HDMI and 3G HD-SDI input, selectable via a switch on the operator’s side, and simultaneously outputs three channels of HD-SDI and two of HDMI. The device draws power internally from the male V-Mount plate attached and passes power through to the camera via the female V-Mount plate on the other side. The male V-Mount plate has an additional D-Tap output for accessory power. Each HD-SDI output is independently reclocked and carries the same strength as the original signal. LED indicators are located on the operator’s side to show status of power and signal. 5V Mini USB port on operator’s side for powering wireless transmitters like Paralinx, IDX Cam-Wave, etc.

This version attaches between any V-Mount plate and V-Mount battery. For example, the C-Box (HD-SDI, V-Mount) can fit between the Blueshape BV090 Battery and the WC V-Mount (Epic/Scarlet). Another example would be attaching it between the Blueshape BV090 Battery and the WC Gold Mount (BMC).

The C-box will accept all common 1080p and 1080i signals. PsF signals and 4K input are not supported.

Specifications:
Weight: 635g (1.4 lbs)
Dimensions: 127 x 76 x 178 mm (5.0 x 3.0 x 7.0 in)

C-Box (Converter, V-Mount, Gold Mount) Instructions
