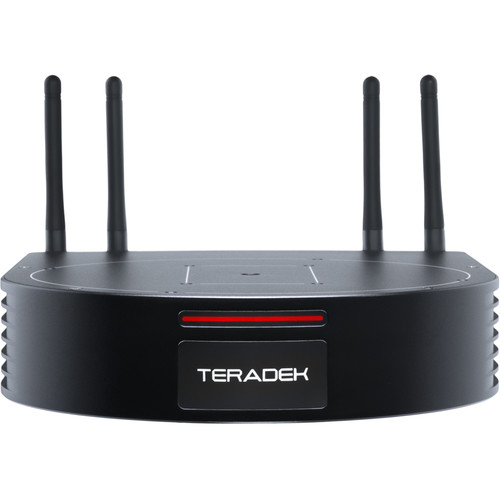

Wirelessly receive up to 1080p60 video from your PTZ camera with the Orbit PTZ HD 3G-SDI/HDMI Wireless Receiver from Teradek. The Orbitz PTZ receiver allows you to output the video over its two 3G-SDI or one HDMI output to a monitor, switch, or recorder with less than 1 ms of latency. The five included antennas receive a powerful line-of-sight signal up to 1000′ away. The video can be transmitted over the free 5 GHz frequency band as well as the 4.9 GHz public safety frequency band.

The Orbit PTZ receiver supports HDR workflows, 10-bit 4:2:2 via 3G-SDI, and 8-bit 4:4:4 via HDMI. It features RS-232 and RS-422 PTZ control ports that support Visca and Panasonic AW PTZ control protocols. Its bright OLED screen shows current settings and frequencies, and it features a tally light on the side of the unit. The receiver can also connect with the Teradek Control app for iOS or Android via Bluetooth for configuration.

One Orbit PTZ transmitter supports up to six receivers, and it can operate in the same area along with Wi-Fi or 5 GHz appliances with the help of the noise-rejection feature. It also features built-in AES-256 encryption with RSA-1024 key exchange to protect your video from prying eyes.

Power is provided using the 2-pin DC power input. Included with the receiver are an 18″ HDMI cable, an 18″ SDI cable, and a 2-pin LEMO-type AC adapter cable.
