Teradek Bolt 6 LT MAX 3G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount) 10-2280-V

$13,290.00

Teradek Bolt 6 LT MAX 3G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount) 10-2280-V

SKU: 10-2280-V Categories: ,

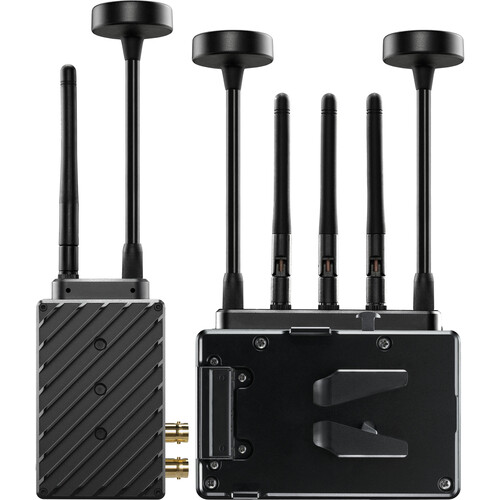

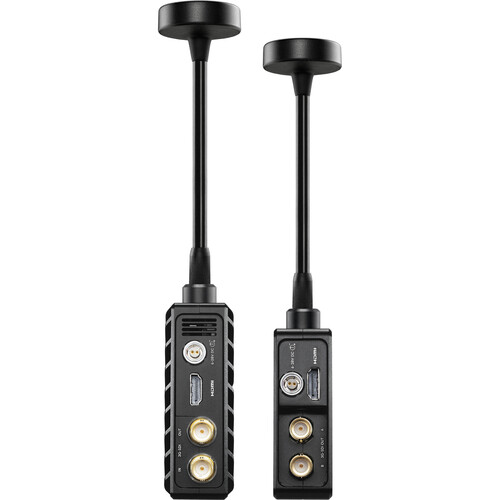

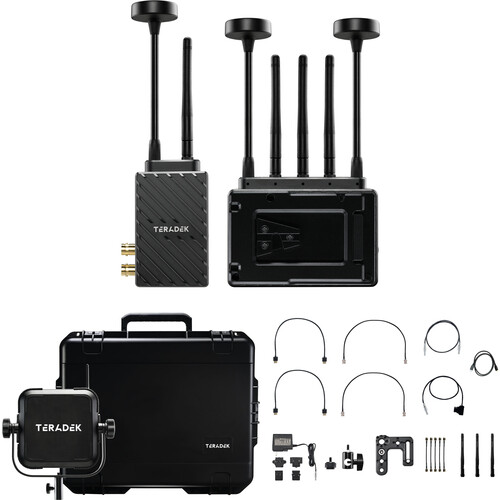

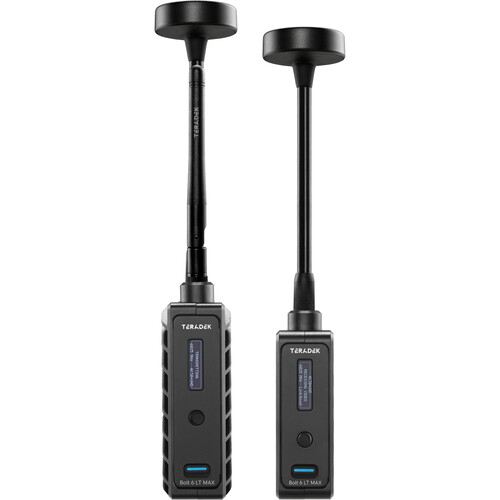

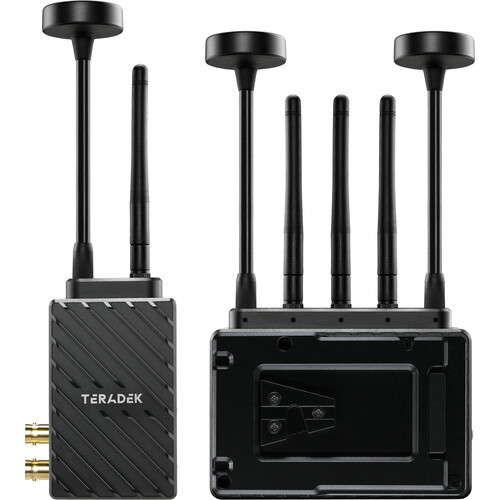

Transmit and receive lossless HD video from up to 5000′ line of sight with the Bolt 6 LT MAX 3G-SDI/HDMI Wireless RX/TX Deluxe Kit from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K30 video with 10-bit HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. The transmitter inputs up to UHD 4K30 video over HDMI or up to 1080p60 video via 3G-SDI, and the receiver outputs video via HDMI and 3G-SDI. A V-mount battery plate is included to power the receiver with a professional V-mount battery. The transmitter unit provides a powerful signal that can travel up to a 5000′ line of sight.

The transmitter sends up to 4K30 video to any Bolt 4K series receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

Key Features
Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum
Transmits to an unlimited number of receivers in broadcast mode
SDI Eye Pattern Tool to check SDI cable integrity
Improved “long-range” mode
Input up to 4K via HDMI video; input/output 1080p via 3G-SDI, and transmit up to 4K30 video
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
HDR workflow support with HDR-10, PQ, and HLG standards
Smaller and lighter chassis design than other Bolt transmitters
Transmit metadata, timecode, and stop/start triggers over a wireless connection
Simultaneously transmit to up to six Bolt 6 or Bolt 4K series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
