Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Receiver 10-2272

$3,540.00

Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Receiver 10-2272

Contact us for a better price

Receive lossless HD video from up to 1500′ away along line of sight with the Bolt 6 LT 1500 50 3G-SDI/HDMI Wireless Receiver from Teradek. The unit can wirelessly receive up to UHD 4K30 video with 10-bit HDR support, features a bright OLED display, and features HDMI and 3G-SDI outputs. With the same form factor as the Bolt 4K LT 1500, this new line supports the 6 GHz wireless band, which is now freely available.

The receiver supports transmissions of up to UHD 4K30 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers and has an improved long-range mode. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption and RSA 1024 key pairing protect your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 LT system also supports the transmission of time code and start/stop triggers.

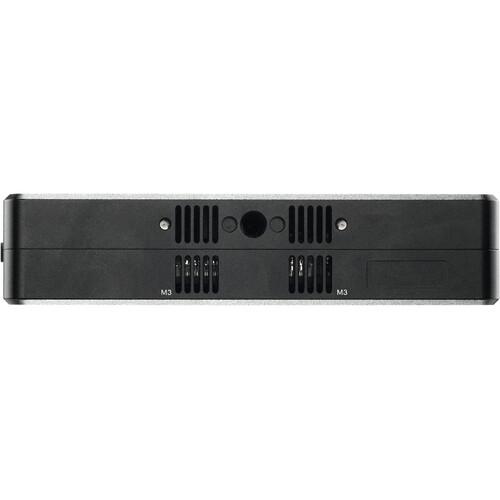

Though it can receive visually lossless video from any Bolt 4K series transmitter with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The receiver also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4″-20 and M3 mounting threads to mount your receiver on a variety of monitors or rigs.

Key Features
Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum
Wirelessly receive up to UHD 4K30 video and output up to UHD 4K30 via an HDMI or up to 1080p60 via 3G-SDI
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved “long range” mode
Small and light chassis design

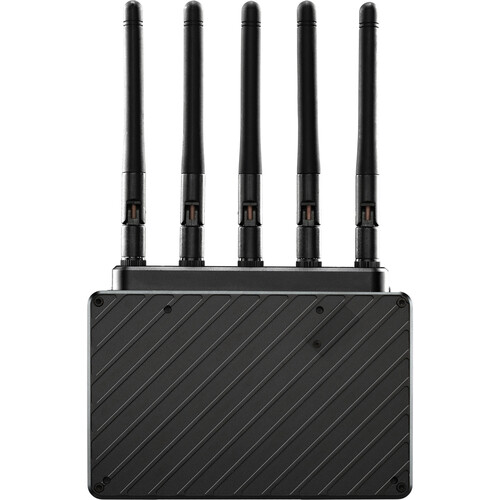

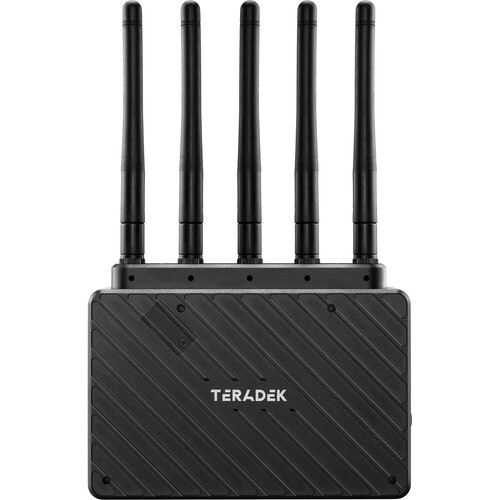

The receiver features five antennas
AES-256 encryption and RSA 1024 key pairing support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
