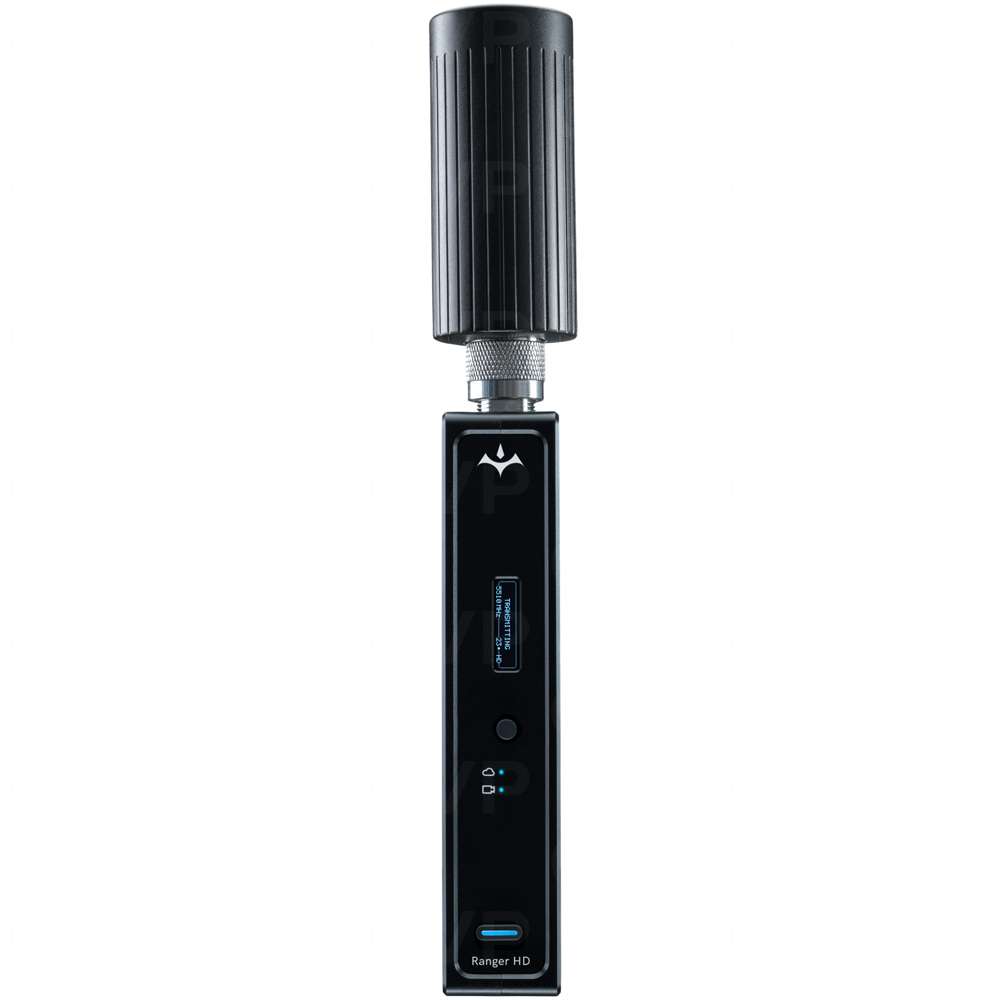

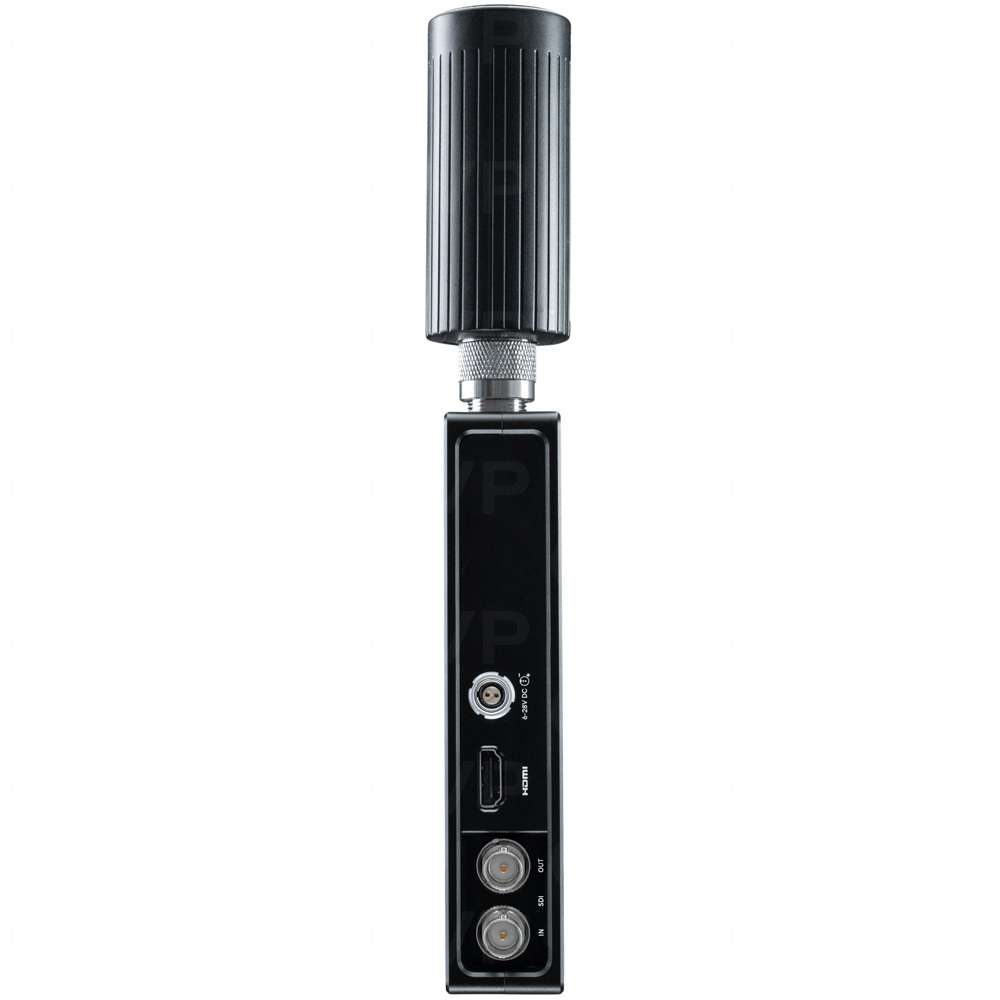

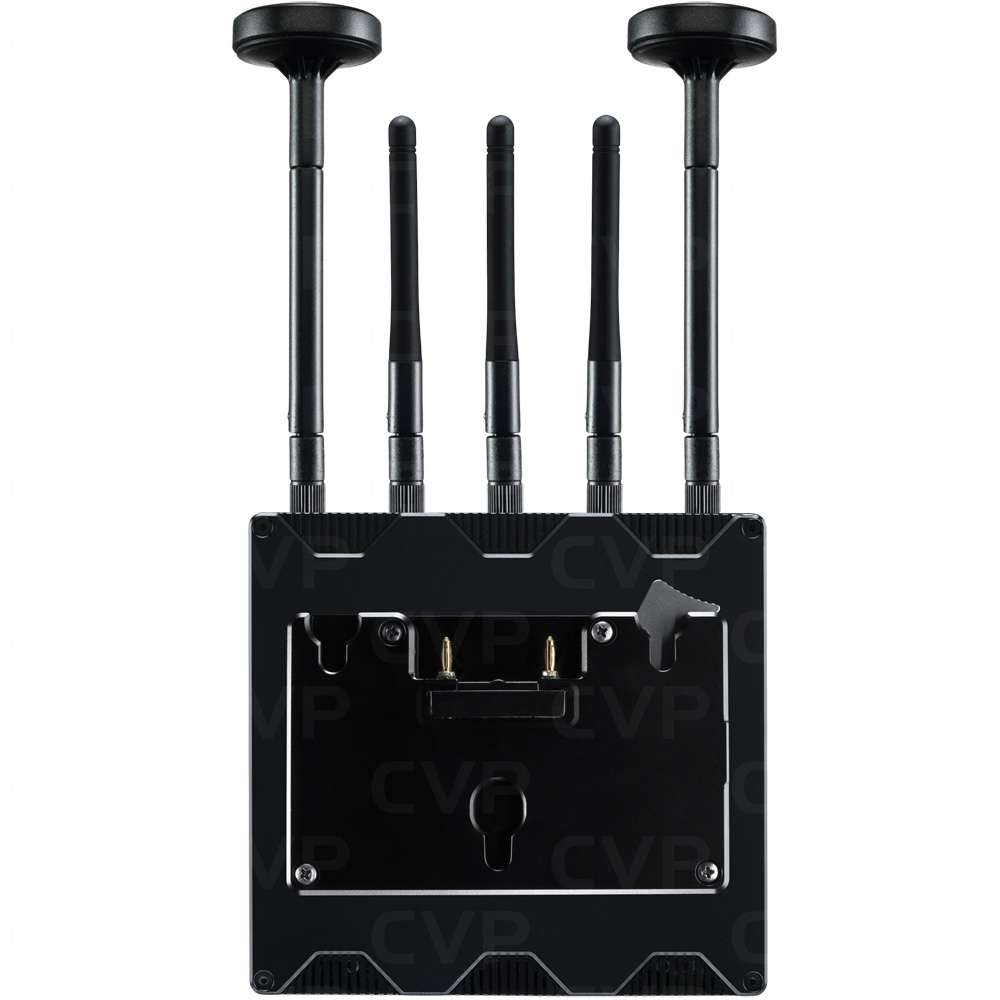

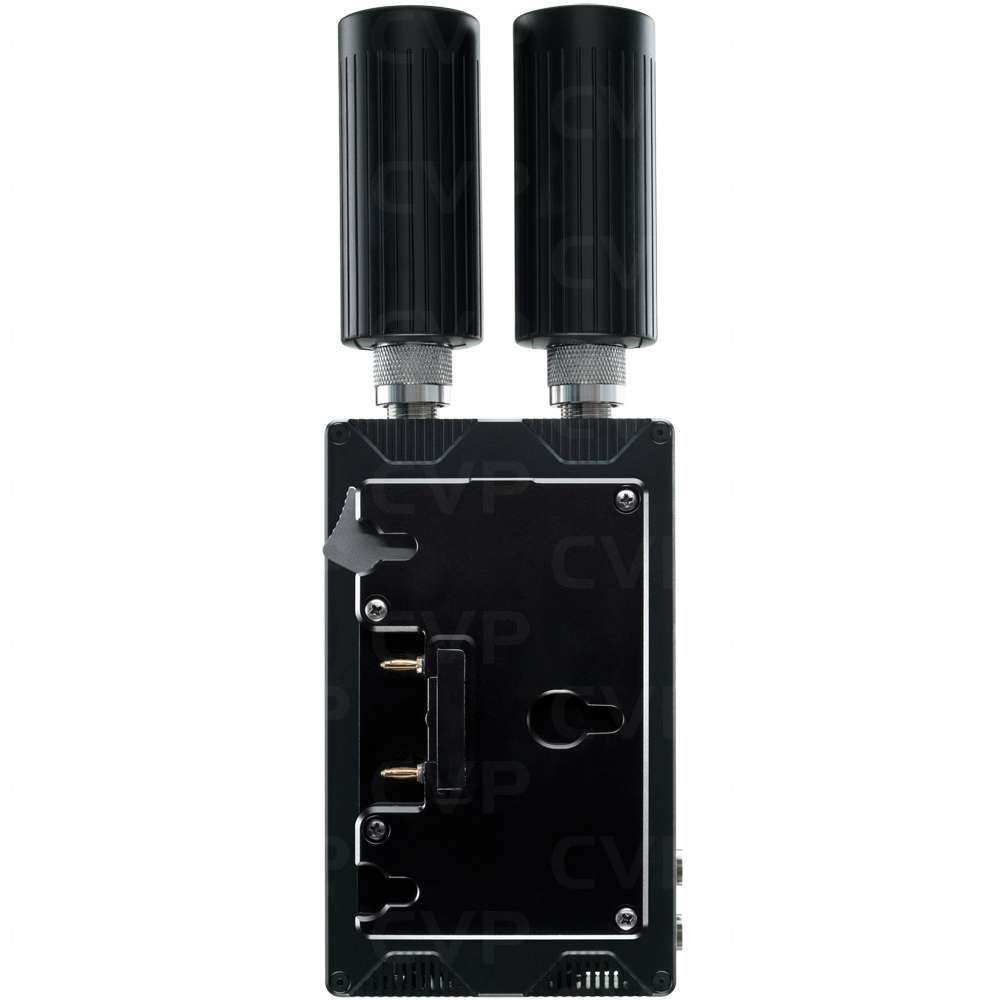

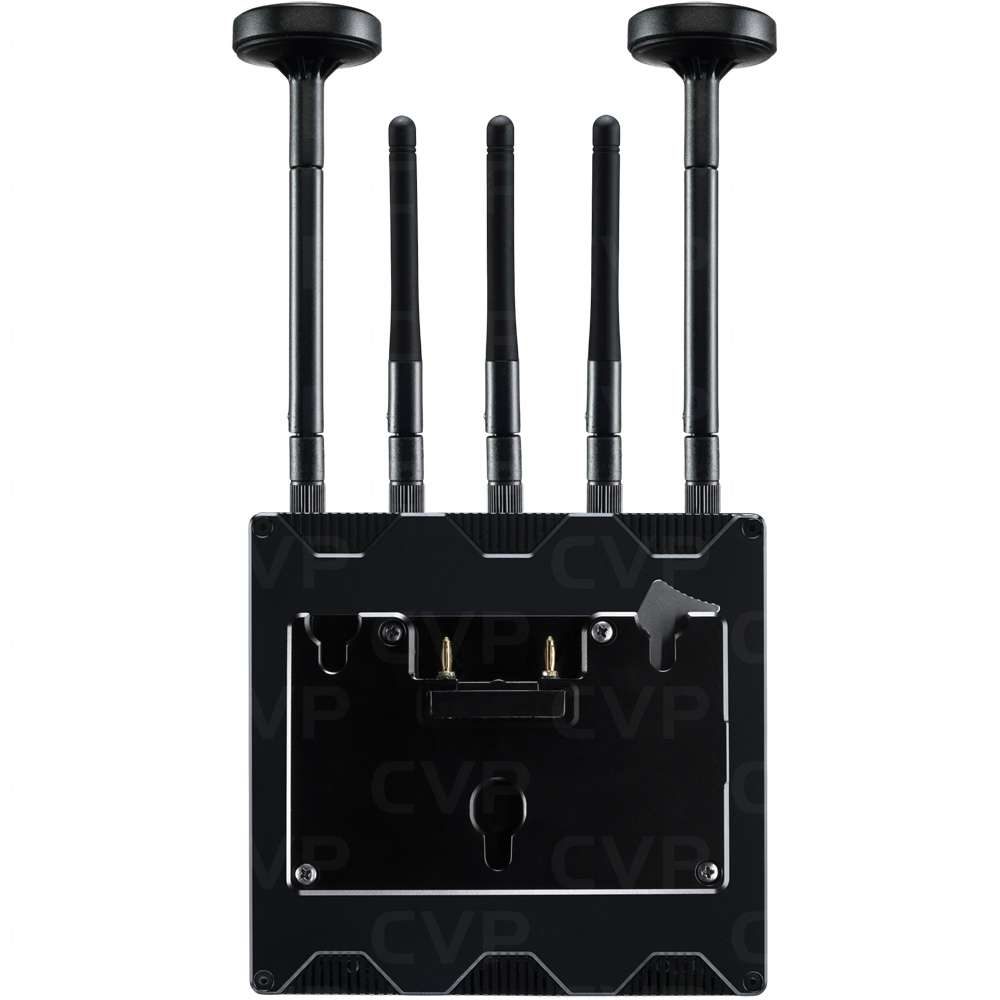

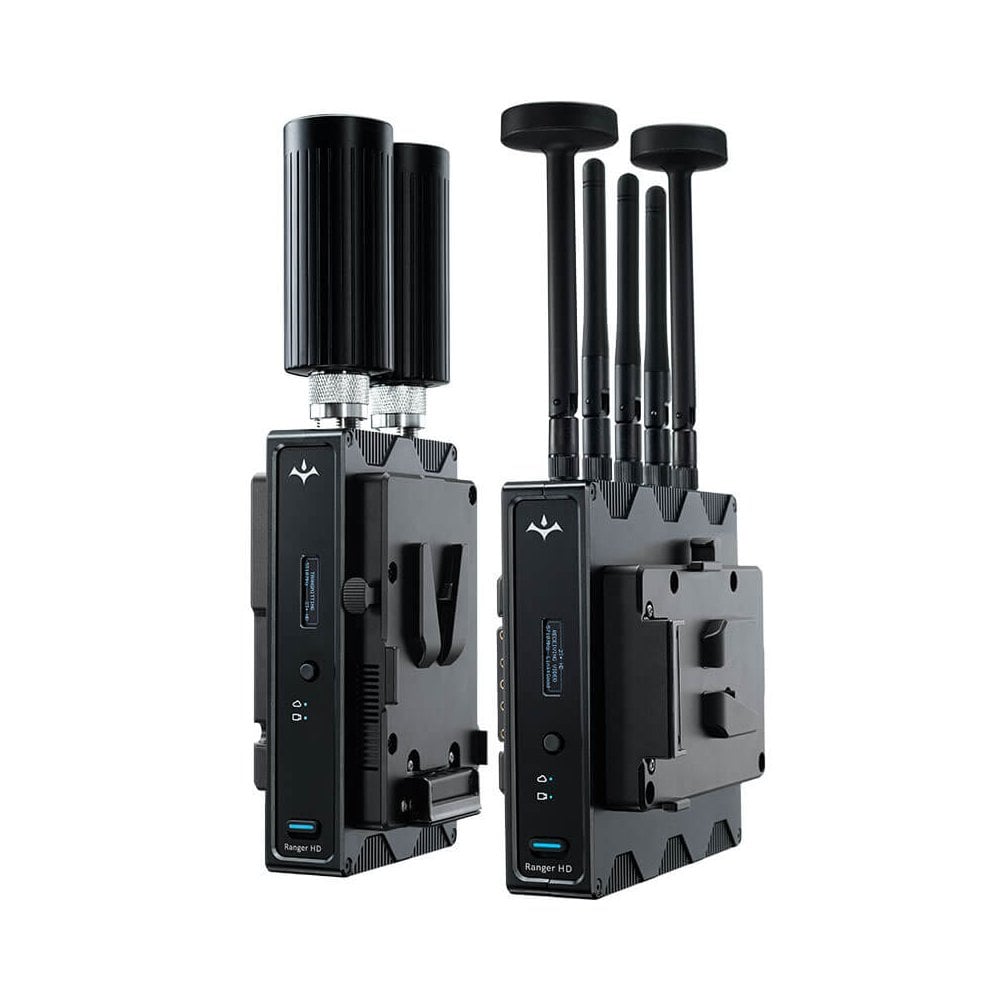

Teradek 10-2510-G (10-2510-G) Ranger HD 3G-SDI/HDMI Wireless TX/RX Set – Gold-Mount. Ranger HD is an uncompressed, 1080 HDR wireless video transmission system for broadcast, live production, and professional A/V. The system utilises Teradek’s patented JSSC technology and operates over the unlicensed 5GHz band. Ranger HD is also capable of transmitting over the 4.9 GHz band, which may require special licensing in certain countries.
Power Through Interference
Teradek’s patented Joint Source Channel Coding (JSCC) technology, utilising MIMO and OFDM, enables the transmission of uncompressed, 10-bit, 4:2:2 video at less than 1 millisecond of delay. Ranger’s exclusive RF design is UNII-5 ready and utilises 40 MHz / 20 MHz channels with far greater efficiency than H.264 / HEVC encoding solutions and offers better performance in the noisiest environments.
Easy Smartphone Configuration
Command your wireless workflow from the palm of your hand with the Launchpad app for iOS and Android. Pair transmitters and receivers with the touch of a button, monitor channel interference, and set..

• Wireless 1080p60 HDR video
• Zero-delay (< 1 ms)
• Uncompressed, 10-bit, 4:2:2 image quality
• Supports a directional antenna for superb wireless performance (sold separately)
• Up to 1,500 ft. of range line of sight
• 4.9 GHz to 6.0 GHz operation
• UNII-5 ready
• 40 MHz / 20 MHz channel bandwidth
• AES-256 encryption using RSA 1024 key exchange protocol
• Manual and automatic frequency selection
• Multicast-capable up to 6 receivers
