Monitor your video production wirelessly with the SmallHD INDIE 7 On-Camera 7″ Monitor with Bolt 4K RX Module Kit put together by B&H. The INDIE 7 features an IPS LCD panel with a resolution of 1920 x 1200 and a touchscreen that provides a wide off-axis viewing experience without a significant shift in color or contrast. The Bolt 4K RX monitor module attaches to the back of the monitor and provides power to the monitor and itself via a Gold mount battery plate. The module can receive up to 4K30 video from any Bolt 4K transmitter from up to 750′ away.

The panel also features a maximum brightness of 1000 cd/m², which allows you to view a clear image even outdoors in bright sunlight. The touchscreen capability of the monitor facilitates using the SmallHD PageOS 4 software package that allows you to create looks and save them as pages and perform a wide variety of monitoring features and operations, including waveform, custom LUT support, anamorphic de-squeeze, and audio meters. The INDIE 7 incorporates 3G-SDI and HDMI inputs and outputs that support up to 4K30 video, as well as a headphone jack for monitoring audio.

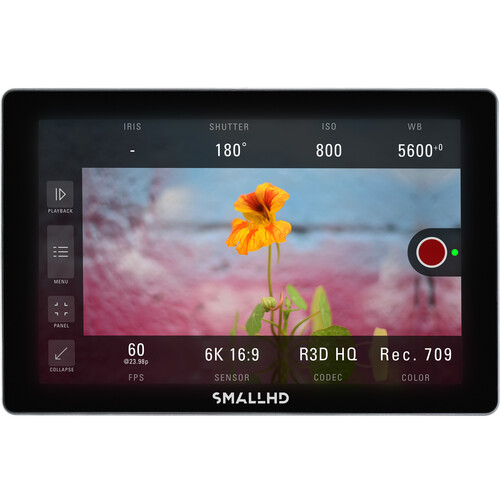

SmallHD INDIE 7 Touchscreen On-Camera Monitor
The lightweight INDIE 7 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 7″ IPS LCD with 1920 x 1200 resolution, 10-bit color processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input via HDMI.

The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4″-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.

Using the intuitive SmallHD PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.
Features
Daylight-viewable, 7″ touchscreen on-camera monitor with 1000 cd/m² brightness
Slim, lightweight design with 10-bit, touchscreen IPS LCD panel
HDMI and 3G-SDI inputs and outputs; supports video input up to UHD 4K30 via HDMI
Four 1/4″-20 mounting threads on left, right, bottom, and back of the monitor
SmallHD PageOS 4 has all the features of OS3 to organize and save customized function and settings pages as well as a settings dashboard, page tabs, false color overlays, improved function buttons, pixel zoom, focus assist, peaking, and more
Power using a barrel input or with the included L-series battery plate, or use a separately available Gold mount or V-mount plate
Durable aluminum chassis
Display Tools
Pixel zoom: 2x and 4x with pinch-zoom
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to 8 channels
UPC: 811786032273
Teradek Bolt 4K RX Monitor Module for Cine 7 and 702 Touch (Gold Mount)
Receive lossless HD video from up to 750′ line-of-sight with the Bolt 4K RX Monitor Module from Teradek. The module mounts onto the back of a SmallHD Cine 7 or 702 Touch monitor and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support and outputs video via one HDMI 2.0 port. A Gold mount battery plate is included to power the receiver using a professional Gold mount battery.

The receiver module supports transmissions of up to 4K30 video from any Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 4K system also supports the transmission of timecode and start/stop triggers from the camera.

The Bolt 4K units are all cross-compatible, so you can transmit to different Bolt 4K receiver models. The system also supports an iOS app that easily connects via Bluetooth, which provides a spectrum analyzer, channel selection tools, and remote configuration.
Cross-compatible with all Bolt 4K and 4K LT series transmitters
Mounts on the back of a SmallHD Cine 7 or 702 Touch monitor
Wirelessly receive up to 4K30 video and output up to 4K30 via HDMI 2.0 port
Gold mount battery plate included
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Smaller and lighter chassis design than other Bolt receivers
The receiver features five antennas
AES-256 encryption and RSA 1024 key pairing support
Wireless Android/iOS app via Bluetooth features a spectrum analyzer and remote configuration
UPC: 818264026885
