SmallHD CINE 5 Touchscreen On-Camera Monitor 16-0526

$1,599.00

SmallHD CINE 5 Touchscreen On-Camera Monitor 16-0526

Cine 5 is lightweight, compact, and offers 2000nits brightness for full visibility even in direct sunlight. Optional camera-control functionality (software license and cable sold separately) allows users to start, stop, record, and more from the convenience of their Cine 5. Experience all your favorite PageOS 5 tools, functions, and settings pages on this field-ready 5-inch monitor.

1080p resolution ensures a clear look at your production, while 10-bit color processing offers excellent color accuracy. The added joystick and back button allow you to use this smart monitor in nearly all conditions, even on cold days when taking off your gloves is not an option.

Cine 5 is designed for high-end camera use – with bright imagery, optional Camera Control, and 2-pin locking power input – making it ideal for First ACs, Camera Operators, and DPs.

Camera Control for RED® DSMC2® & RCP2™

Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to RED DSMC2, KOMODO®, and V-RAPTOR™ camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

Additional Camera Control compatibility coming soon.

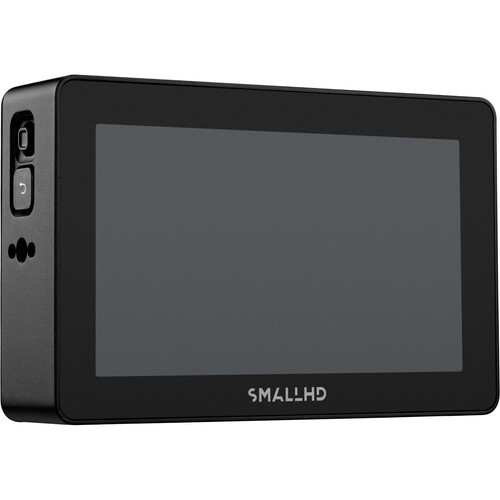

Slim, lightweight, daylight-viewable, 5″ touchscreen on-camera monitor with 2000 cd/m² brightness.
HDMI-to-SDI and SDI-to-HDMI cross conversion is supported.
Supports 10-bit 4:2:2 DCI-P3 color
The included PageOS 5 Toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), Advanced Teradek RT Overlays, and more. The PageOS 5 UI offers quick and repeatable setups and full control over all parameters and display tools.
Power via 2-pin power input.

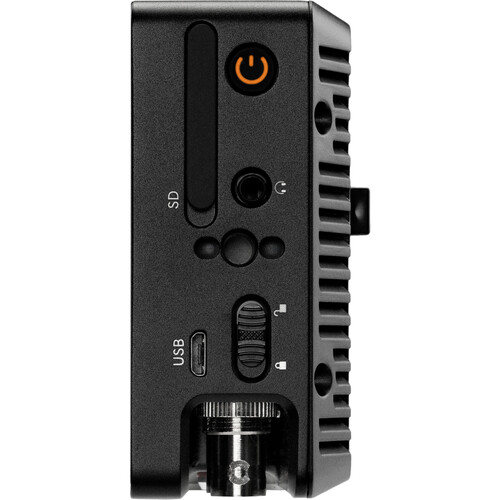

Four 1/4″-20 mounting points on top, left, right, and back.
Optional RED camera control.
RED Control Features
Run/stop
Color controls
Exposure controls
Status
Color temperature
Video format
Playback
Shutter
Menu control
Software Features
Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch-zoom
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
Image flip: Auto and manual
Image rotation: Auto and manual
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Dual zebra: Customizable
Waveform: Luma and RGB, customizable with region of interest highlighting
Vectorscope: Yes
RGB parade: Customizable
Histogram: Luma and RGB
Image capture: With dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
Image overlay: Opacity slider and blink setting
Audio meters: HDMI and SDI up to eight channels
Weight 2 lbs
Dimensions 5 × 3 × 5 in
