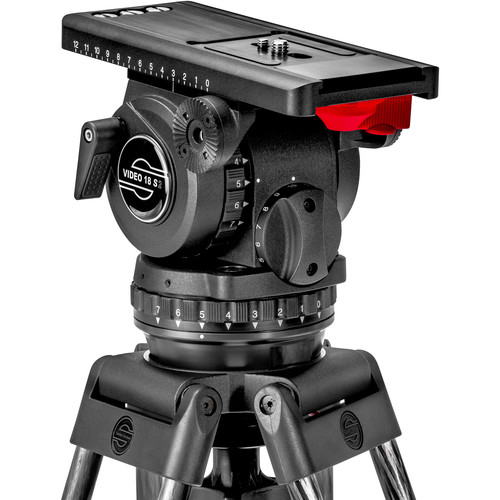

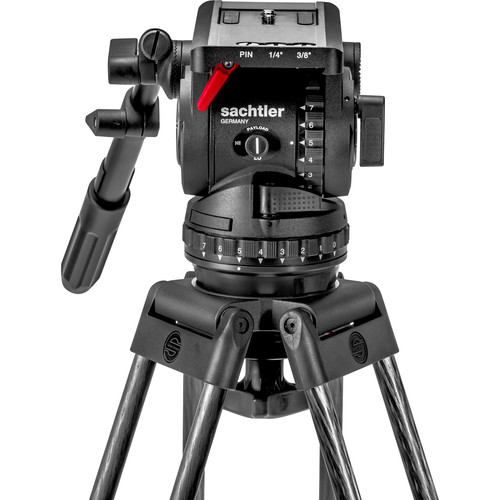

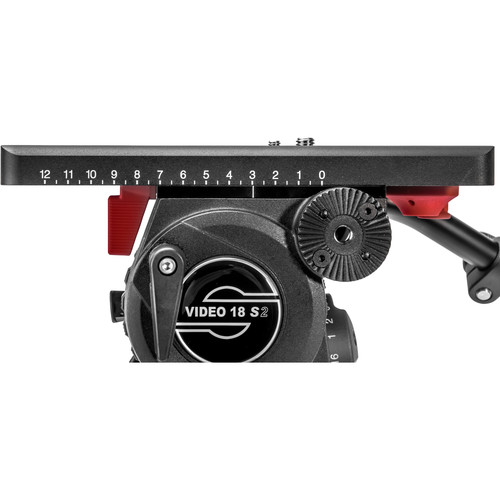

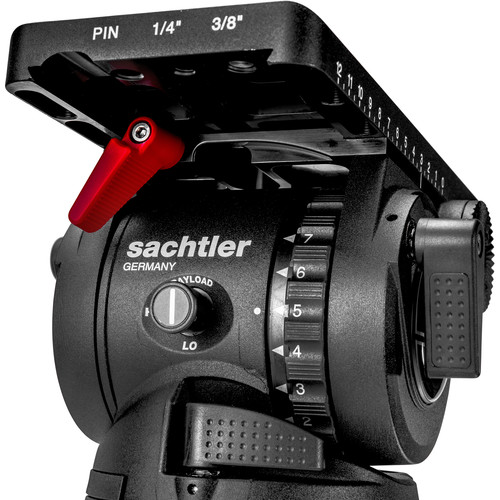

The top of the Video 18 S2 head is dominated by a sliding balance platform which accepts Sachtler’s convenient Touch & Go quick release camera plate. Once the plate is secured, the entire platform adjusts to balance your camera setup. At the front of the platform, parking spaces for 1/4″-20, 3/8″-16, and registration pin screws are available for when they are not being used. Both sides of the head feature rosette mounts for pan handles. A right-side pan handle is included with the Video 18 S2. The base of the head terminates in a 100mm bowl mount for coupling with industry standard tripods, jibs, sliders, or other grip equipment that feature 100mm bowls.
Sachtler Video 18 S2 Specs
Camera Plate Features |
Sliding Balance Plate, Quick Release |
Camera Plate Type |
Touch & Go Plate 16 |
Balance Plate Sliding Range |
4.7″ / 120 mm |
Base Mount |
100 mm Half Ball |
Drag Control |
Tilt: 7-Step Plus 0 |
Vertical Tilt |
+90° to -70° |
Panning Range |
360° |
Independent Pan Lock |
Yes |
Independent Tilt Lock |
Yes |
Load Capacity |
4 to 44.1 lb / 2 to 20 kg |

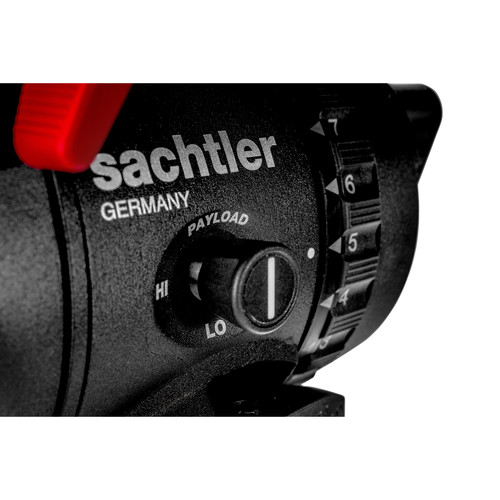

Counter Balance |
Incremental 16-Step |
Bubble Level |
1 x Illuminated |
Operating Temperature |
-40 to 140°F / -40 to 60°C |
Weight |
9 lb / 4.1 kg |
