S-7006S is the standard V-mount battery adaptor plate, with robust thickened power pins for reliable contacts with batteries.

◆ V-mount battery adaptor plate
◆ Fit for SWIT S-1073F monitor
◆ 2-pin DC plug for monitor board
◆ Reliable power connection
Specification
Applicable battery SWIT S-8082S/8110S/8180S; S-8083S/8113S/8183S
Output voltage Nominate DC 14.4V
Dimension 119×99×15mm
Weight 0.2kg

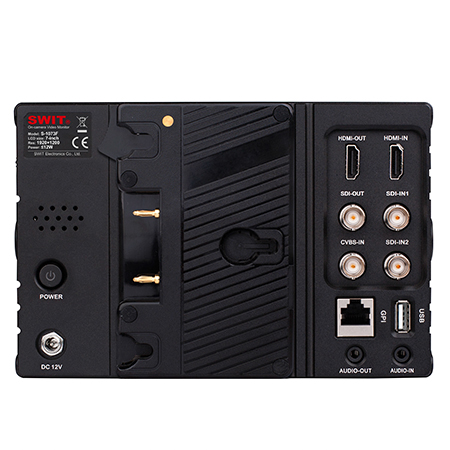

S-1073F Monitor Installation
S-7006S battery plate can be installed on SWIT 7-inch on-camera monitor S-1073F by 4 screws conveniently, with a 2-pin DC plug for the monitor board.
