S-4611 is a mini converter for SDI to DVI conversion, (DVI-D, 18+1 connector), which can be widely used to display up to 3Gb/s broadcast SDI video on DVI monitor, televisions, LED board or projectors.

• Portable 3G/HD/SD-SDI to DVI Converter
• 1 SDI input, 1 DVI output, and 1 SDI loop
• SDI audio output via 3.5mm socket

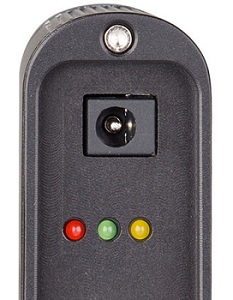

• Power/input/output status indicator
• Pole-tap 6-18V DC power input
• Heavy duty aluminium housing
• Bottom screw threads for installing

• Input and Output

  S-4611 offers:

  • 1x 3G/HD/SD-SDI input
  • 1x 3G/HD/SD-SDI loop output (Reclocked)
  • 1x DVI-D output
  • 1x 3.5mm audio output
    (The SDI to DVI supports the same format conversion only.)
