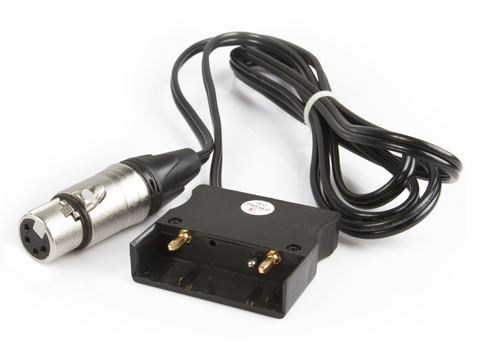

Swit S-7100A Gold Mount to 4-pin XLR Cable
September 24, 2019
Swit S-4610 SDI Audio Embedder
$315.00
SDI Audio Embedder Embed 2-ch audio to any 2 positions of SDI first 8 audio channels

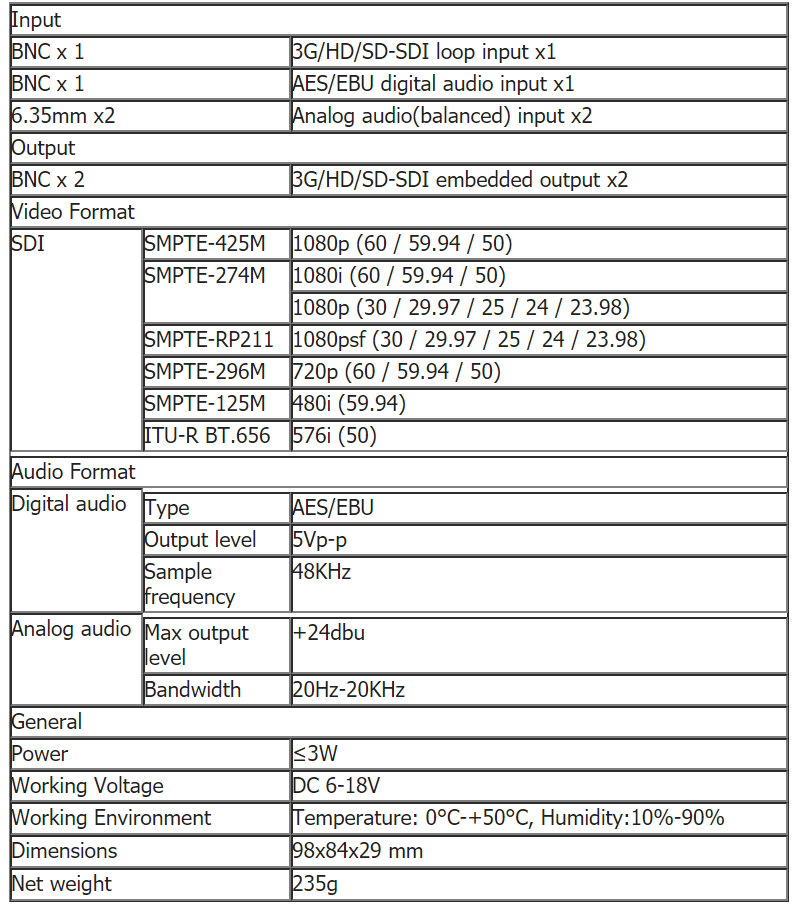

Input: 1x 3G/HD/SD-SDI input, 1x AES/EBU digital audio input (2-ch), 2x 6.35mm analog audio input (balanced)
Output: 2x New embedded 3G/HD/SD-SDI output
S-4610 is a portable mini converter of SDI audio embedder, supports digital audio or analog audio to embed, and SDI up to 3Gb/s. It’s widely used in broadcast field production and professional audio/video conversion and transmission.

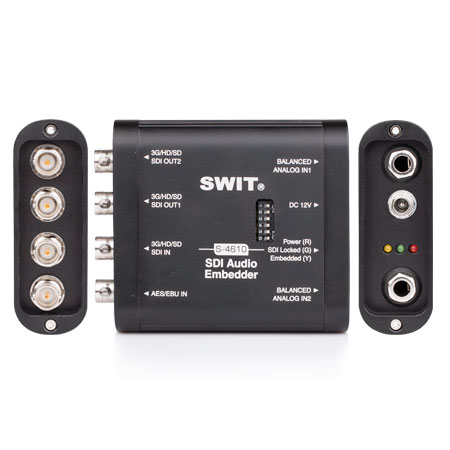

S-4610
SDI Audio Embedder
◆ Portable Audio to SDI Embedder
◆ 3G/HD/SD-SDI supported

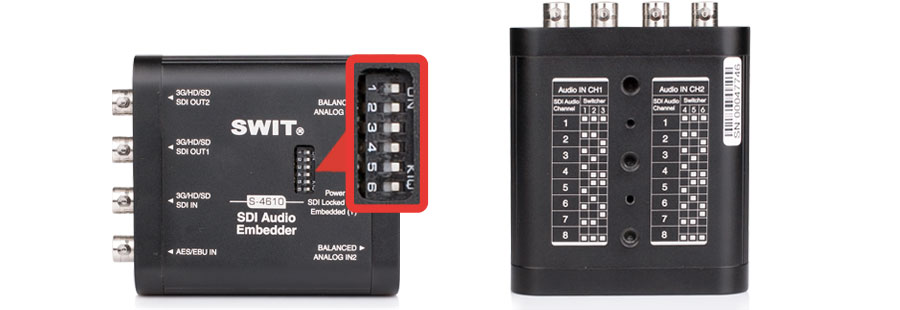

◆ Embed audio to any 2 channels of
SDI first 8-ch positions
◆ AES/EBU audio input and embed
◆ 6.35mm balanced audio input and embed
◆ 2x SDI output with new embedded audio

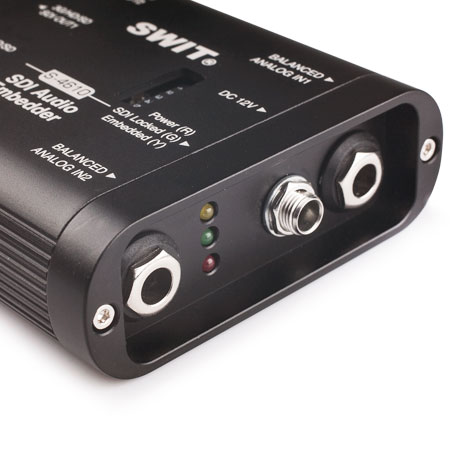

◆ Power/input/output status indicator
◆ Pole-tap 6-18V DC power input
◆ Heavy duty aluminium housing

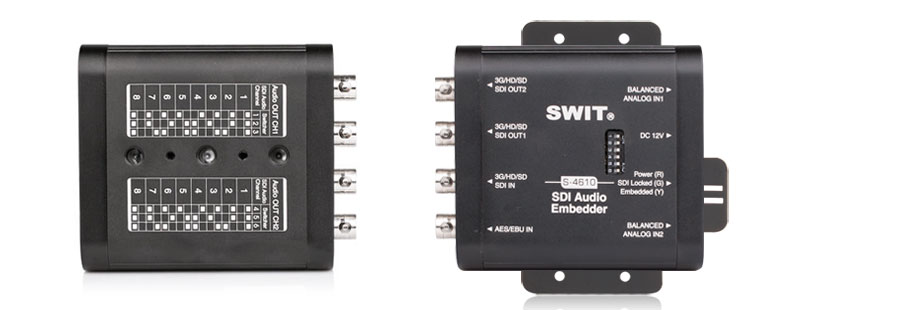

◆ Bottom screw threads for installing
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
