Swit S-4609 SDI Audio De-Embedder
$315.00
SDI Audio De-Embedder De-embed any 2-ch audio from SDI first 8-ch embedded audio
Input: 1x 3G/HD/SD-SDI input
Output: 2x 3G/HD/SD-SDI loop output (Reclocked), 1x AES/EBU digital audio output (2-ch), 2x 6.35mm analog audio output (balanced)
≤3W
S-4609 is a portable mini converter of SDI audio de-embedder, supports up to 3Gb/s SDI, and can be widely used in broadcast field production and professional audio/video conversion and transmission.

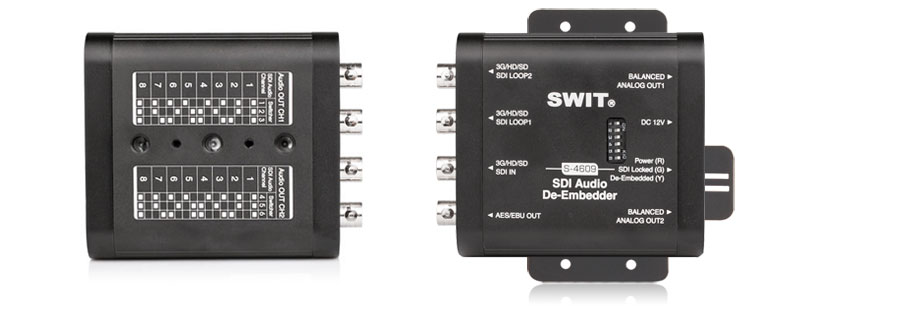

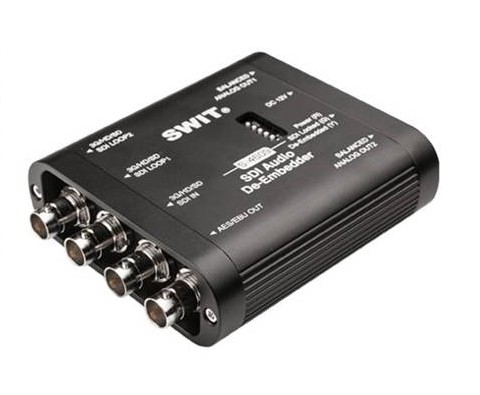

S-4609
SDI Audio De-Embedder
◆ Portable SDI to Audio De-embedder
◆ 3G/HD/SD-SDI supported

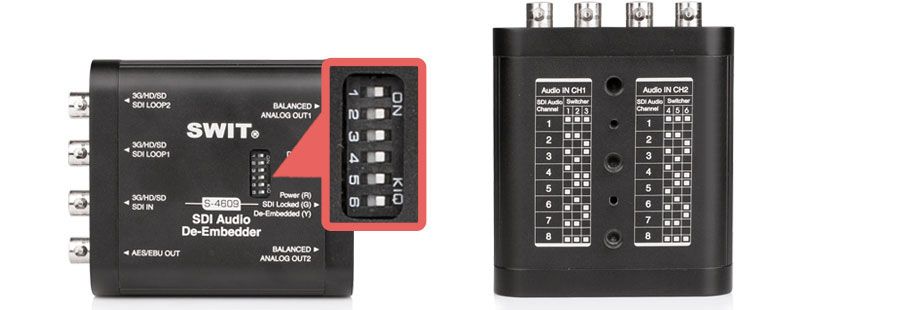

◆ De-embed any 2-ch from first 8-ch audio
◆ Output AES/EBU audio

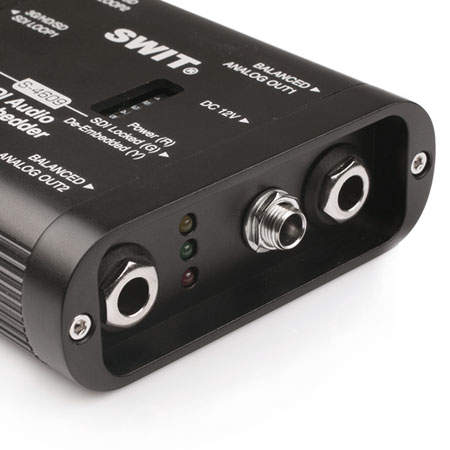

◆ Output 6.35mm balanced audio
◆ Provide 2x SDI loop output
◆ Power/input/output status indicator

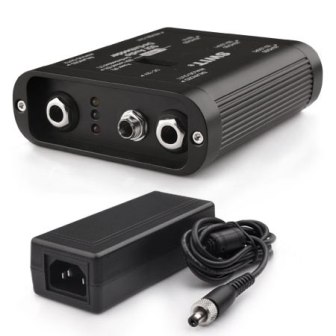

◆ Pole-tap 6-18V DC power input
◆ Heavy duty aluminum housing
◆ Bottom screw threads for installing

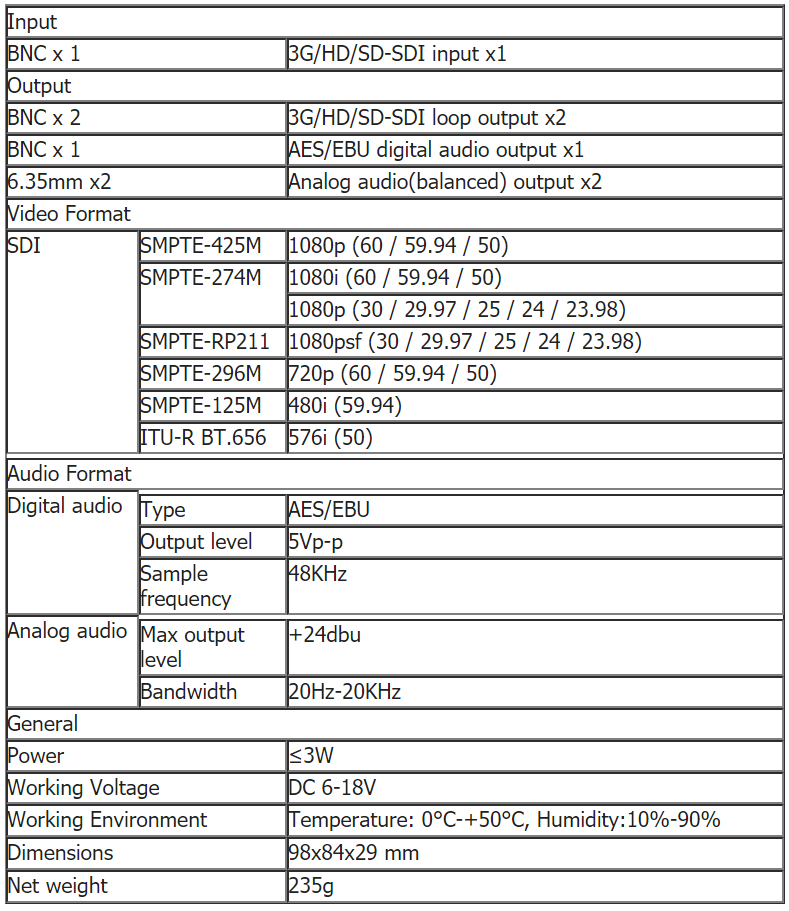

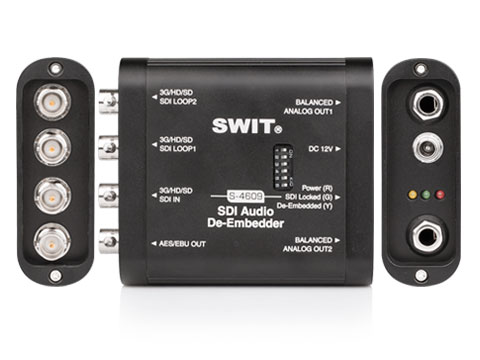

S-4609 provides:
1x 3G/HD/SD-SDI input
2x 3G/HD/SD-SDI loop output (Reclocked)
1x AES/EBU digital audio output (2-ch)
2x 6.35mm analog audio output (balanced)
(If both AES/EBU audio and analog audio is connected, only AES/EBU audio outputs)
| Weight | 4 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
