Swit S-4605 SDI to OPTICAL Converter
$440.00
3GSDI to Optical Fiber Single mode Optical Fiber, LC connector Max 20km reliable transmission
Input: 1x SDI input
Output: 1x Fiber output, and 1x SDI loop output

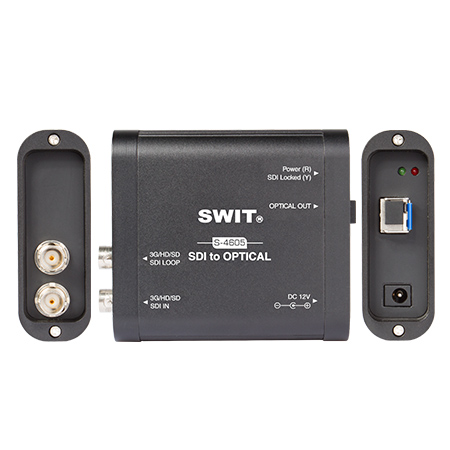

The S-4605 is a portable mini converter for SDI to LC single mode Optical Fiber converter, widely used on transmitting SDI in a long distance.
- Portable 3G/HD/SD-SDI to Optical Fiber Converter
- 1 SDI input, 1 Optical output, and 1 SDI loop output
- Single-mode Optical fiber, LC connector
- Max 20km reliable transmission

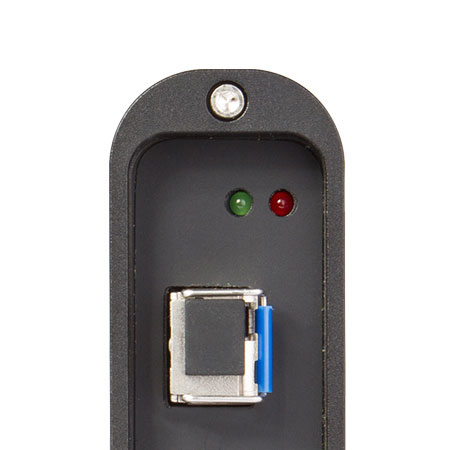

- Support hot swap of the optical module
- Power/SDI input status indicator
- Pole-tap 6-18V DC power input
- Heavy duty housing
- Bottom screw threads for installing
-

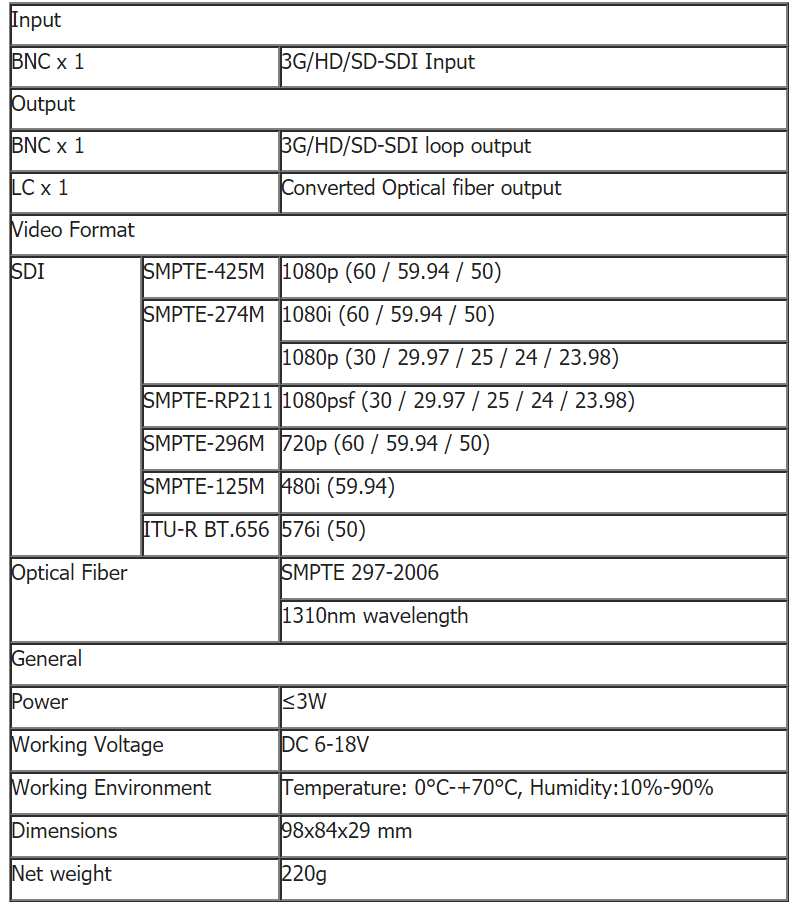

Input and Output
S-4605 offers:
- 1x 3G/HD/SD-SDI input
- 1x 3G/HD/SD-SDI loop output (Reclocked)
- 1x LC Optical Fiber output
| Weight | 4 lbs |
|---|---|
| Dimensions | 5 × 6 × 7 in |
