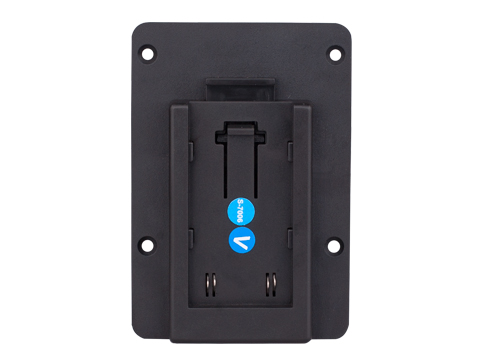

Swit S-7006V JVC BN-VF Battery Plate for S-1073F
September 24, 2019
Core SWX A-GP-A-VB 3-Stud to 3-Stud Adapter
November 5, 2019
Swit M-1093H Dual 9-inch FHD Rack LCD Monitor
$2,750.00
The M-1093H adopts 2× 9-inch IPS (In-Plane Switching) LCD panels, with Full HD 1920×1200 resolution and LED backlight, 800:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170
- 9-inch IPS LCD Panel
- 1920×1200 resolution, 800:1 contrast

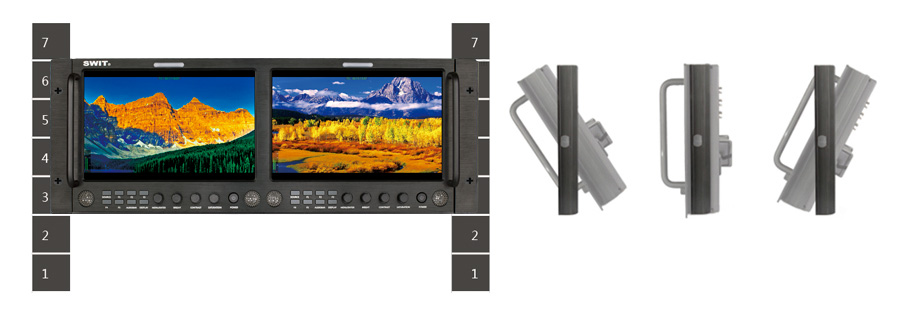

- 19-inch 4U rack mounting, ±30° rotatable
- 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring

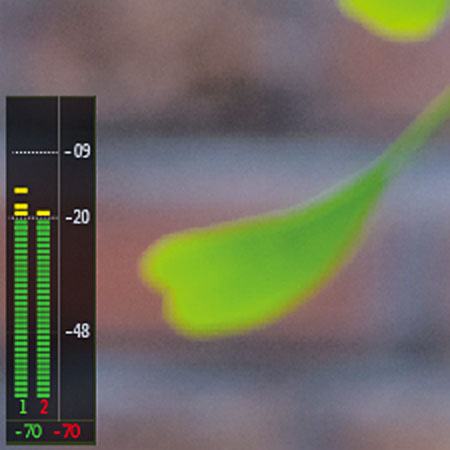

- 2-ch Embedded audio meters alert

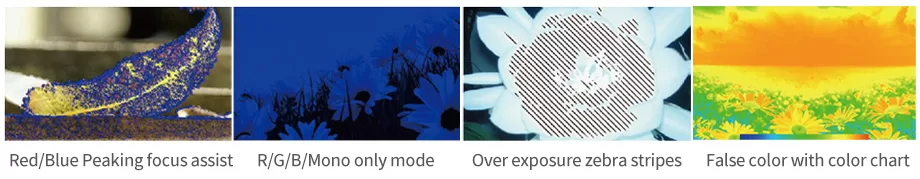

- AFD, H/V delay, R/G/B/Mono, False color

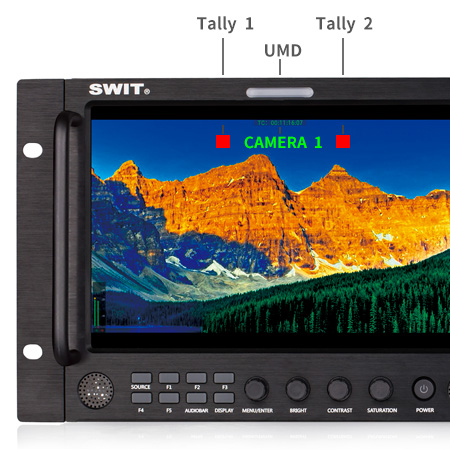

- TSL UMD and Text-Tally display
- Zebra stripes, Peaking focus assist

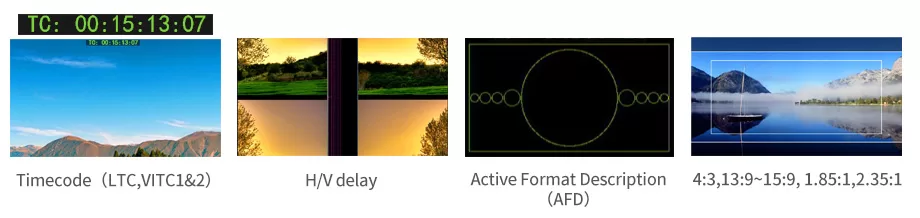

- SDI timecode display
- Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1

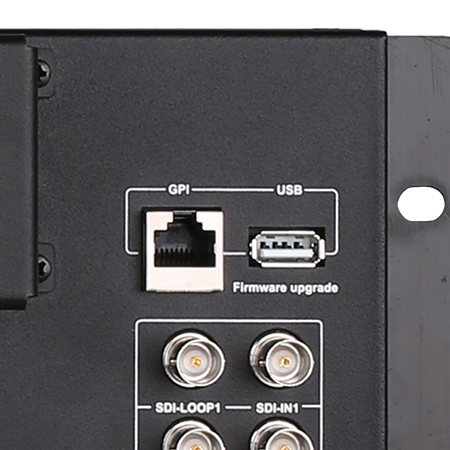

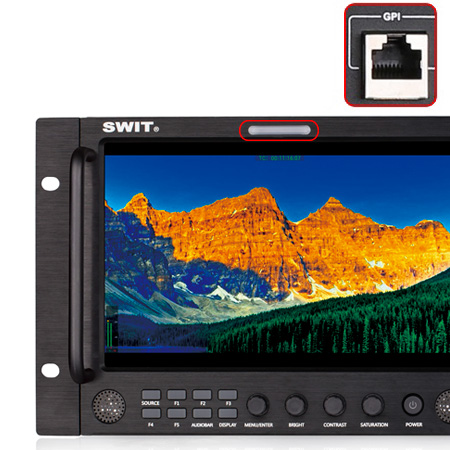

- TALLY light and GPI control
- USB firmware upgrade
-

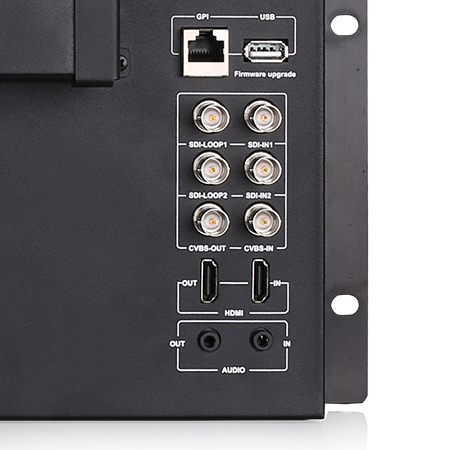

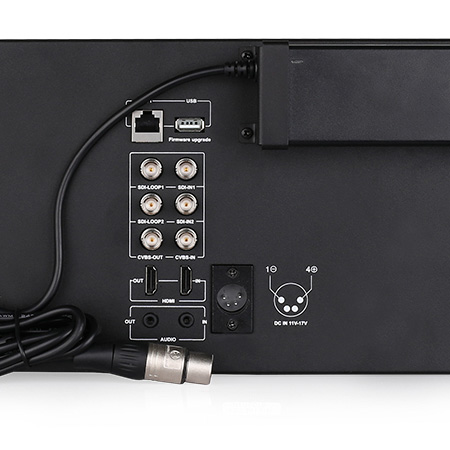

Input/Ouput Interfaces (SDI/HDMI/CVBS/Analog Audio)
Each LCD of M-1093H monitor supports:
- 2K/3G/HD/SD-SDI input × 2
- 2K/3G/HD/SD-SDI loop output × 2
- HDMI 1.3 input × 1
- HDMI 1.3 loop output x1
- CVBS input x1
- CVBS loop output x1
- 3.5mm analog audio input × 1
- 3.5mm analog audio output × 1
| Weight | 6 lbs |
|---|---|
| Dimensions | 11 × 11 × 11 in |
