Litepanels Gemini 2×1 RGBWW LED Soft Panel (Pole-Operated Yoke) 940-1411

$4,792.75

Contact us for the best price available.
Phone (818) 763-2036
Email: [email protected]

Flexibility and control are key to the creation of the Gemini 2×1 RGBWW LED Soft Panel with Pole-Operated Yoke and Bare Ends Power Cable from Litepanels. The aluminum-constructed, 25.0 x 6.5 x 12.5″ fixture has three lighting modes. The CCT color temperature control has six factory presets in increments from 2700 to 6000K. There are also six presets for user-defined color temperature and plus/minus green control. The HSI Color mode allows you to adjust the hue, saturation, and intensity, while Gel mode permits your choice from a library of filters often used by image makers. A firmware update adds a Lighting Effects Mode that includes TV simulation, hue burst, paparazzi, strobe, fire, squares, fireworks, emergency lights, pulse, and party lights. The light has a CRI/TLCI rating of 97 for daylight balance and 99 for tungsten balance, indicating a very accurate rendition of color. The Gemini is dimmable from 100 to 0% without flicker or color shift. Settings and features are displayed on the rear LCD screen.

All of these adjustments can be made locally on the unit or remotely via a console, thanks to the Gemini’s built-in DMX. There’s even the option of wireless DMX or Bluetooth control via a separately purchased remote module. The Gemini is ready for worldwide use, thanks to its built-in 100 to 240 VAC power supply but it can also run on batteries when power is unavailable.

The Gemini has a number of convenience features, such as the ability to stack and gang several lights together with an optional yoke and hardware. You can also daisy-chain multiple lights together in Master/Slave mode, allowing a single designated “Master” light to control the others. This version of the Gemini ships with a bare ends power cable and a pole-operated yoke that allows pan and tilt adjustments from below overhead mounted lights.

3 Lighting Modes

  • CCT (Correlated Color Temperature) mode allows for bi-color (daylight to tungsten) operation with the addition of plus and minus green adjustment
  • HSI Color mode allows for full color control over hue, saturation, and intensity
  • Gel mode allows for a variety of gels to be selected from the menu

Firmware Update for Special Effects

A firmware update adds a Lighting Effects Mode that includes TV simulation, hue burst, paparazzi, strobe, fire, lightning, squares, fireworks, emergency lights, pulse, and party lights.

Performance

  • Flicker-free at any frame rate or shutter angle at any intensity level
  • Smooth dimming from 100 to 0%, with no color shift
  • Energy efficient – fixture draws only 325W nominal
  • No heavy external ballast or restrike period
  • Ultra-quiet cooling fan with optional silent operation mode

Presets

  • Program user presets on Channel A, which records color and intensity. It also has factory presets on channel B with increments for 2700 to 6000K plus six user-programmable presets

Control

  • Master/Slave mode – connect multiple lights together and control them all from a single master light
  • Optional Bluetooth and wireless DMX modules allow the brightness, color, and cooling mode to be remote controlled
  • Intuitive and ergonomic controls for dimming, color, and fixture set up

Power Options

  • Integrated multi-voltage power supply operates worldwide on current from 100-240 VAC, or operate with DC battery power using separately available V-mount or Gold-mount battery plates

Durability and Design Features

  • Aluminum core construction to provide maximum durability and superior thermal management
  • Durable, industry standard powerCon locking power connector with ability to daisy chain power
  • Yoke with Junior pin for easy mounting and positioning

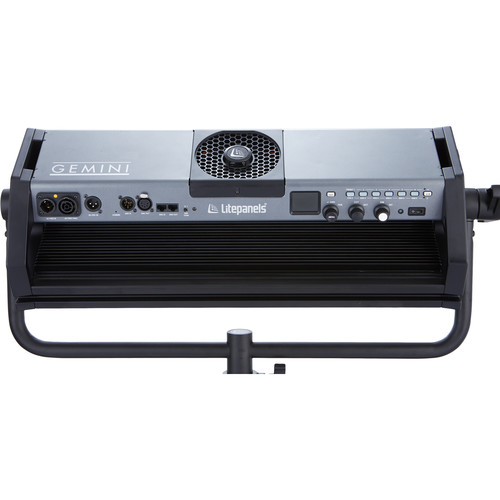

  • LCD screen displays vital settings and status
  • Barndoor/honeycomb accessory rails
Weight11 lbs
Dimensions11 × 5 × 11 in
