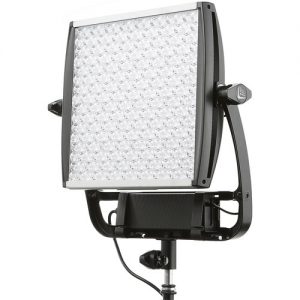

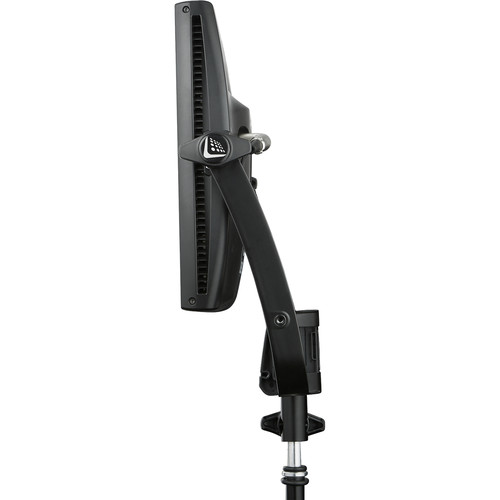

Litepanels Astra Bi-Focus Daylight LED Panel 935-6000

$1,135.25

Contact us for the best price available.
Phone (818) 763-2036
Email: [email protected]

At one time, the only way you could focus your light source was by using a Fresnel or PAR fixture. Litepanels has changed that with the introduction of the Astra Bi-Focus Daylight LED Panel. Fresnels and PARs can be cumbersome, but Litepanels uses two sets of lenses in the panel to allow spot-to-flood beam adjustment from 15 to 45 degrees in a fixture that is only 5.3″ thick. The 15-degree beam angle is handy in situations where you want to isolate a subject, control spill, or manage long-throw applications; whereas 45 degrees is ideal for wide coverage. And best of all you can adjust your coverage without moving the light, a valuable capability when the Astra is hung overhead or mounted in hard-to-reach places. This is where Astra’s control features will be appreciated.

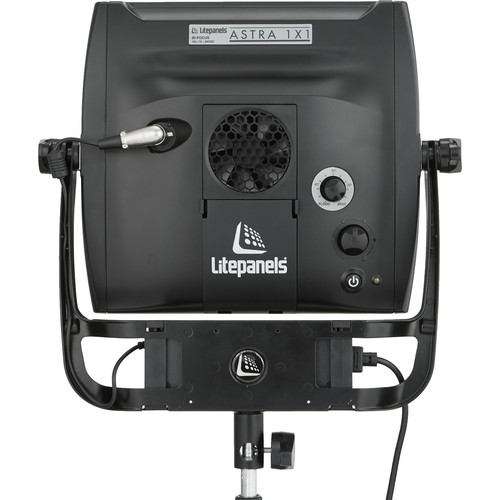

The Astra’s brightness function may be adjusted locally using the intuitive built-in control or operated remotely with one of the optional DMX512 modules, available in 5-pin XLR, RJ45, or wireless formats. Each module provides Master/Replica configuration for the control of single lights, or for multiple light fixtures in a network or daisy chain. In addition, the Astra Bluetooth module provides the same kind of control of single or multiple lights from a portable device, using the free Litepanels Smartlite downloadable app. The accessory modules slide into place on the rear of the Astra panel simply and quickly, with no wiring or complex installation required.

The Astra Bi-Focus offers all the benefits of using an LED light source and then some. The light features a low power draw of 105W with a high output while maintaining a high TLCI/CRI rating of 95, indicating accurate and precise color rendering. The Astra Bi-Focus Daylight is ready for worldwide use thanks to the included 100 to 240 VAC power supply, but it can also run on 14.4V professional batteries with the purchase of a V-mount or Gold mount battery plate for situations where mains power is unavailable. Mounting options include a 5/8″ receiver, or  two 1/4″-20 mounting points.

Benefits

  • Aluminum I-beam core construction for maximum durability
  • Aluminum accessory mounting points and lens/filter rails
  • Modular curved yoke design
  • Wide, unobstructed tilt range
  • High performance LEDs with custom paired optics
  • High-intensity 15-degree spot for longer throw, 45-degree flood for wider coverage
  • Flicker-free at any frame rate or shutter angle
  • Accurate color reproduction; CRI/TLCI rated at 95
  • Ultra-smooth dimming from 0 to 100% without color shift
  • Efficient thermal management
  • Completely silent passive cooling mode or very quiet active cooling mode allows high light output
  • Maximum power draw of 105W
  • Optional yoke-mounted Gold mount or V-mount battery plates with dual integrated cable guides for external power source
  • Optional Bluetooth and DMX communications modules allow the intensity, focus, and cooling mode to be controlled remotely
  • Industry-standard 3-pin XLR locking power connector
  • Removable TVMP connector for flexible mounting options
  • Two alternate 1/4″-20 mounting points
Weight11 lbs
Dimensions11 × 5 × 11 in
