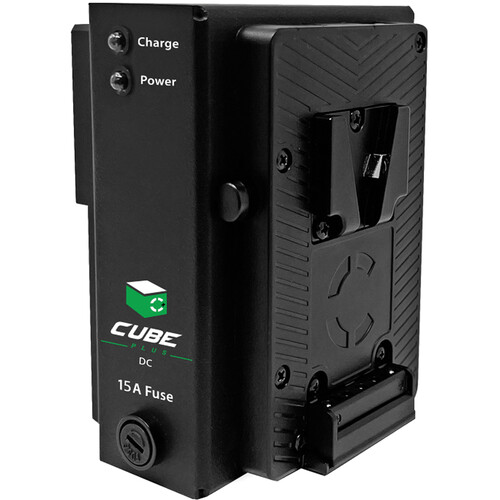

Core’s Cube Plus DC is a lightweight, all aluminum on-board power module capable of powering a camera or device, while simultaneously charging an on-board battery pack up to 3A* per hour(~2hrs to fully charge a 98wh pack).

The Cube Plus DC, when having an on-board pack mounted, is designed to act like an uninterruptable power source should DC input power be disconnected. Not only will the device switch from the DC power source to on-board power for the camera or device, but the two ptap connections are also backed up.

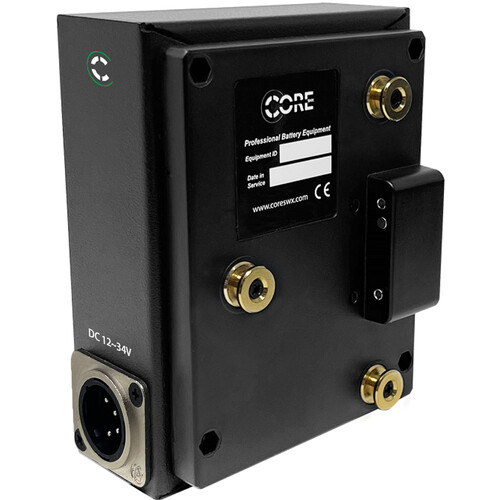

The unit has a 4pin XLR DC input to accept 12 to 34 volts, providing you the flexibility of using various outputs from your block battery style, like Core’s Maverick MV6, or a AC to DC power supply.

The Cube Plus DC has internal protections along with a replaceable 15A fuse.

The Cube Plus is fanless, and operates silently. *depending on the power supply load, charge speed may reduce.

*depending on the power supply load, charge speed may reduce

DC Output: up to 200w(dependent upon DC input power source)
Quick Charge Current: up to 3A*
Protection: Over Current, Voltage & Temperature
Dimensions: 4.8′′ x 3.3′′ x 3.7′′
Weight: 1.2lbs.
Input Voltage: DC 12-34v
